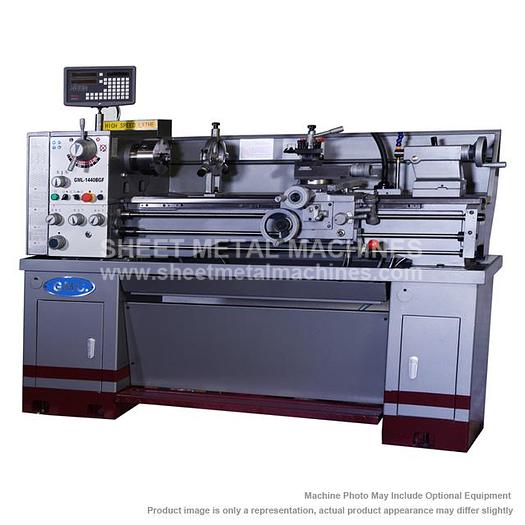

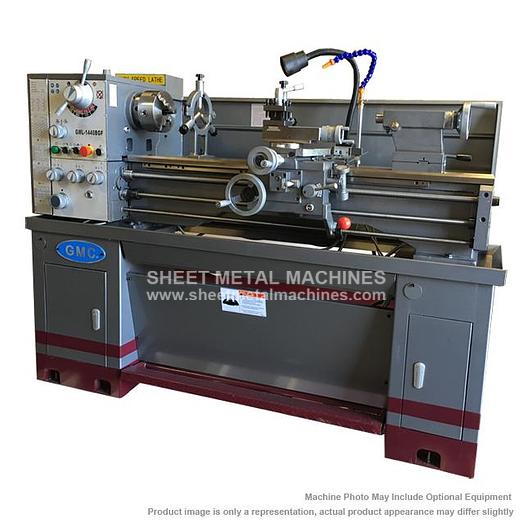

GMC Machine Tools High Speed Precision Engine Lathe GML-1440BGF-1

GMC Machine Tools High Speed Precision Engine Lathe GML-1440BGF-1


orCall 386-304-3720


Please note: many products ship straight from manufacturer GMC High Speed Precision Engine Lathe GML-1440BGF-1 ISO 9001 certified Full Geared-head precision Engine Lathe with foot brake Quick-change gearbox with fast and easy threading set up Heavy Duty main motor 3HP, 220V Spindle bore 1-1/2 Heavy Duty spindle D1-4 Heavy Duty guideway width 7 1/2 8 spindle speeds from 70-2,000 rpm, speeds: 70/115/190/300/460/755/1255/2000rpm 56 kinds of inch threads, and 44 kinds of metric threads Spindle is balanced, hardened and precision ground All gears and shafts are hardened and precision ground Guideways induction hardened and precision ground Automatic lubrication system in headstock and feed box

STANDARD ITEMS: Free DRO and Taper Attachment 6 3-jsw chuck with set reversible jaws 8 4-jaw chuck with set reversible jaws 10 Face plate 3-3/4 large steady rest 2 follow rest Removable gap Foot brake Coolant system Halogen work light 4-way tools post Full length splash guard (2) dead centers and (1) reducing sleeve Thread chasing dial Tool box

OPTIONAL ITEMS - CALL FOR PRICE: PART#DPD410 10” Drive Plate PART#MCS1440 Micro Carriage Stop PART#NW840 DRO for 1440BGF, NEWALL, 2 axis, free install PART#SINO DRO for GML-1440BGF, 2 axis, free install PART#5C 5-C Hand lever type collet closer,”JFK” USA,free install PART#900-0014 33 pc 5C collet set, from 1/16 to 1-1/16” by 32ndth PART#TA-GML1440 Taper turning attachment , free installation PART#900-0051-200 6pc ALORIS type quick change toolpost (wedge) PART#900-0050-03 Live Center MT3 PART#700-0102 1/2” drill chuck PART#700-0153 1/2” drill chuck arbor PART#Lathe package #1 includes: 5pc indexable carbide turning set# 2003-0003, 1/2 drill chuck # 700-0102, Chuck arbor # 700-0153 and 29pc Titanium drill bit set #5000-0001T


ManufacturerGMC Machine Tools
Stock NumberGML-1440BGF-1
Max. swing over bed14"
Max. length of workpiece Max. length of cutting40” 34”
Max. swing over cross slide8-1/4”
Max. Swing in gap19-1/4”
Width of Bed7-1/2”
Effective length in gap to spindle6-1/2"
Effective length in gap to chuck jaws3-5/8"
Spindle bore1-1/2” , D1-4
Taper of spindle centerM.T.# 5 (MT5/MT3)
Spindle speeds70-2,000 rpm / 8 steps
Longitudinal feeds0.00168-0.11750 IPR, 24 kinds
Cross feeds0.00046-0.03231 IPR, 24 kinds
Inch threads4 - 112 TPI, 56 kinds
Metric threads0.1 - 7.0 mm , 44 kinds
Diametral Pitch threads16 - 112 DP, 32 kinds
Module threads0.1 - 1.75mm, 34 kinds
Spindle speeds, 8 steps70/115/190/300/460/755/1255/2000 rpm
Max. travel of top slide4-1/4”
Max. travel of cross slide7-1/4”
Diameter of tailstock quill1-1/2”
Max. travel of tailstock quill4”
Taper of tailstock quill centerM.T. # 3
Main motor3 HP, 220V, 1 phase
Coolant pump motor1/16 HP, 220V, 1 phase
Net weight, approx.1,730 lbs
Overall dimensions, LxWxH70” x 35” x 59”
