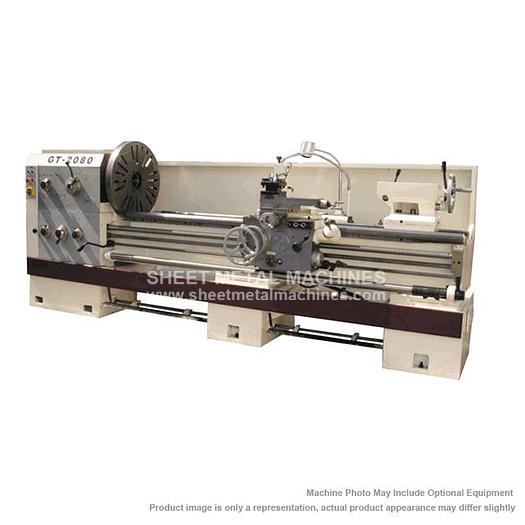

GMC Precision Gap Bed Lathe GT-2080
GMC Precision Gap Bed Lathe GT-2080
$21,850 FREE SHIPPING!
Description
Please note: many products ship straight from manufacturer GMC Precision Gap Bed Lathe GT-2080 ISO 9001 certified Large spindle bore 4-1/8” Adjustable mechanical spindle clutch for spindle start Forward/reverse and brake, spindle brake without stop the spindle motor to longer motor 8 times life than most other Brand lathe with electrical start/stop. 4-way rapid traverse on Longitudinal and cross ways All dual inch/metric dials. solid cast iron machine base Heavy Duty guideway width 15-1/2” Heavy Duty main motor 10 HP 12 spindle speeds from 36-1,600 rpm Threading and feeding rate change without changing gears Automatic kick-out longitudinal carriage stop system for GT-2040& GT-2060 & GT-2080 only Oil pump on apron for lubrication to all ways and leadscrews Spindle is balanced, hardened and precision ground Spindle is supported at 3-point by high precision bearings All gears and shafts are hardened and precision ground Guideways induction hardened and precision ground Automatic lubrication system in headstock and feed box
STANDARD ITEMS: Free Taper turning attachment, installed Spindle clutch 4-way repaid traverse on carriage and cross slide 12” 3-jaw chuck with top reversible jaws 16” 4-jaw chuck 25” Face plate 10” drive plate 4-3/4” – 10-1/4” large steady rest with roller jaws 1”-3” follow rest Automatic kick-out longitudinal carriage stop system for 60” & 80” only Oil pump on apron for lubrication to all ways and leadscrews Removable gap 4-way tools post Foot brake Halogen Work light coolant system Full length splash guard (2) dead centers and (1) reducing sleeve Thread chasing dial Tool box OPTIONAL ITEMS - CALL FOR PRICE: PART#SR5-GT-2080 3/4”-5” steady rest with brass tips Leveling pad DRO for #GT-2040, NEWALL (England), 2 axis DRO for #GT-2060, NEWALL (England), 2 axis
DRO for #GT-2080, NEWALL (England), 2 axis SINO DRO for GT-2040 lathe, 0.0001” res SINO DRO for GT-2060 lathe, 0.0001” res SINO DRO for GT-2080 lathe, 0.0001” res. 5-C Hand lever type collet closer, “JFK” USA PART#900-0014 33 pc 5C collet set, from 1/16 to 1-1/16” by 32ndth Taper turning attachment, free installation PART#900-0051-400 6pc Aloris type quick change tool post PART#900-0050-05 Live center for tailstock MT# 5 PART#2003-0005 5pc Indexable carbide turning set PART#2003-0014 3/8” carbide insert
Specifications
| Manufacturer | GMC Machine Tools |
| Model | GT-2080 |
| Condition | New |
| Stock Number | GT-2080 |
| Max. swing over bed | 20" |
| Max. length of workpiece | 80" |
| Max. swing over cross slide | 12" |
| Max. Swing in gap | 28" |
| Width of Bed | 15-1/2" |
| Effective length in gap to spindle | 9" |
| Effective length in gap to chuck jaws | 6" |
| Spindle bore | D1-8, 4-1/8” |
| Taper of spindle center | MT6 |
| Spindle speeds | 36-1,600 rpm / 12 steps |
| Longitudinal feeds | 0.0023-0.093 IPR, 65 kinds |
| Cross feeds | 0.0011-0.04 IPR, 65 kinds |
| Inch threads | 28-2 TPI, 25 kinds |
| Metric threads | 1-14 mm , 22 kinds |
| Module threads | 0.5-7 mm, 18 kinds |
| Diameter Pitch threads | 56-4 DP , 24 kinds |
| Max. travel of top slide | 5-3/4" |
| Max. travel of cross slide | 12-1/2" |
| Longitudinal Rapid Traverse | 18 ft/min. |
| Cross Rapid Traverse | 8 ft/min. |
| Diameter of tailstock quill | 3" |
| Max. travel of tailstock quill | 6” |
| Taper of tailstock quill center | M.T. # 5 |
| 4-way Tool Post Size | 1" x 1" |
| Longitudinal leadscrew diameter / pitch | Diameter: 3" Pitch: 2 TPI |
| Main motor | 10 HP, 220V/440V, 3phase, prewired on 220V |
| Rapid traverse motor | 1/3 HP, 220V/440V, 3 phase, prewired on 220V |
| Coolant pump motor | 1/8 HP,220V/440V, 3 phase, prewired on 220V |
| Net weight, approx. | 8,350 lbs |
| Overall dimensions, LxWxH | 123” x 43” x 63” |
