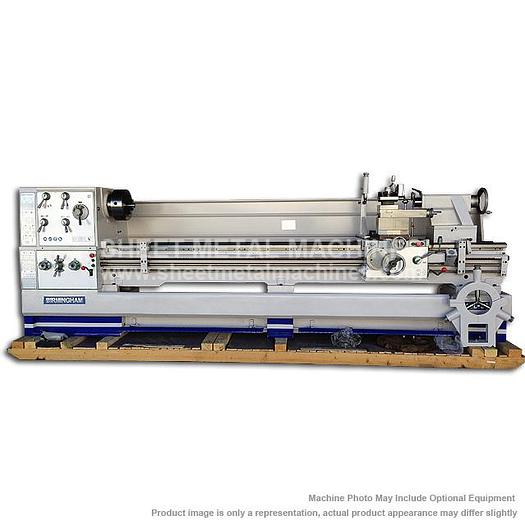

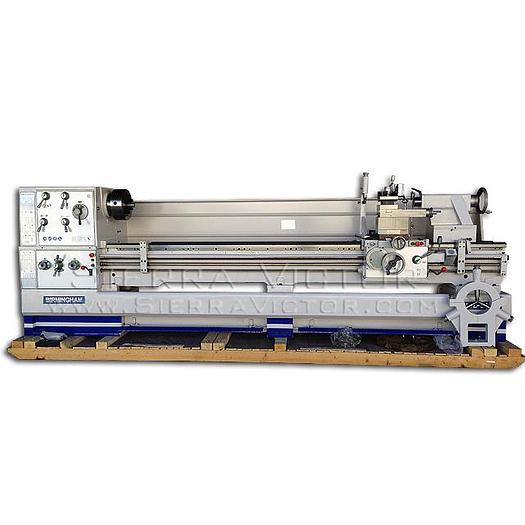

BIRMINGHAM Precision Gap Bed Lathe YCL-26120 26" x 120"

BIRMINGHAM Precision Gap Bed Lathe YCL-26120 26" x 120"

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer BIRMINGHAM Precision Gap Bed Lathe YCL-26120 26" x 120" ITEM: 26" x 120" Precision Gap Bed Lathe MANUFACTURER: BIRMINGHAM MODEL: YCL-26120 STANDARD EQUIPMENT: 3 JAW CHUCK 4 JAW CHUCK FACE PLATE STEADY REST W/ ROLLER JAWS FOLLOW REST GAP 4 WAY TOOL POST THREADING CHASING DIAL ( 2 ) DEAD CENTERS REDUCING SLEEVE FULL LENGTH SPLASH GUARD ONE PIECE CAST IRON BASE FOOT BRAKE HALOGEN WORK LIGHT COOLANT SYSTEM LEVELING PADS 4 POSITION AUTO KICK-OUT LONGITUDINAL CARRIAGE STOP TOOL BOX TAPER TURN ATTACHMENT 10" LARGE STEADY REST W/ ROLLER JAWS 5C HAND LEVER TYPE COLLET CLOSER "JFK" USA 5C COLLET CHUCK (FRONT OPERATE) D1-6 MOUNT DIGITAL READOUT: " NEWALL DP-700 " OR " ACU-RITE " OR " UNIQ IMPORT"

Specifications

ManufacturerBirmingham
ModelYCL-26120
ConditionNew
Stock NumberYCL-26120
Swing over cross slide17-1/4"
Swing in gap36"
Length of gap10"
Center height13"
Distance between centers120"
Width of bed16"
Max. section of tool1" x 1"
Max. travel of cross slide14-1/2"
Max. travel of compound rest9"
Spindle noseD1-8
Taper of spindle boreØ133mm (1:20) MT5
Spindle speed step16
Range of spindle speed26 ~ 1,600 RPM
Inch threads range7/16 ~ 80 T.P.I.
Metric threads range0.45 ~ 120mm (54 kinds)
Diametrical pitches range7/8 ~ 160DP (42 kinds)
Module pitches range0.25 ~ 60MP (46 kinds)
Cross feeds range in metric lead screw0.044 ~ 1.48mm/rev (25 kinds)
Cross feeds range in inch lead screw0.00165 ~ 0.05497"/rev (25 kinds)
Longitudinal feeds range in metric lead screw0.022 ~ 0.74mm/rev (25 kinds)
Longitudinal feeds range in inch lead screw0.00083 ~ 0.02774"/rev (25 kinds)
Dia. of tailstock sleeve3-1/2"
Morse taper of tailstock sleeveMT5
Power of coolant pump1/8 HP
Packing size (L x W x H)188" x 45" x 73"
Net weight8,179 lbs. (3,710 kg)
Gross weight9,480 lbs (4,300 kg)
