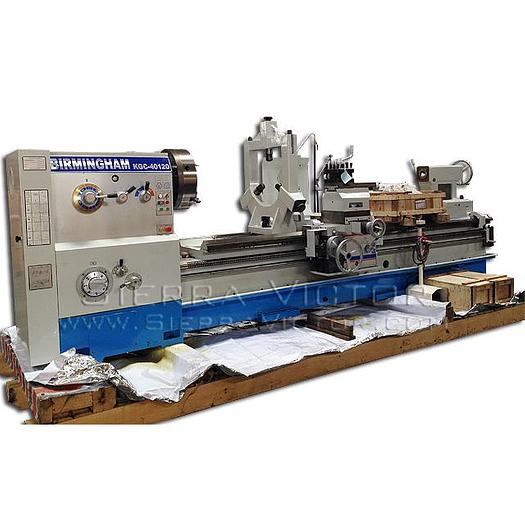

BIRMINGHAM Horizontal Lathe KGC-40120
BIRMINGHAM Horizontal Lathe KGC-40120
Contact us for price
Description
Please note: many products ship straight from manufacturer BIRMINGHAM 40" x 120" Horizontal Lathe KGC-40120 KGC-40120 Lathe ( 40" x 120" ) , ( 5" / 130 mm Spindle Bore hole ) 3 PH, 220V /440V , 20 Horse Power + Taper Attachment installed
Specifications
| Manufacturer | Birmingham |
| Model | KGC-40120 |
| Condition | New |
| Stock Number | KGC-40120 |
| Max.swing diameter over bed | 1030mm (40-1/2") |
| Max.swing in gap | 1200mm (47-1/4") |
| Swing over cross slide | 700mm (27-1/2") |
| Distance between centers | 3000mm (120") |
| Length in gap from face plate | 380 (15") |
| Spindle nose | C11 or D11 |
| Spindle bore | 105mm (4-1/8") or 130mm (5-1/8") |
| Taper of spindle bore | Metric NO.120 or Metric NO.140 |
| Spindle speeds | 10-800rpm |
| No of spindle speeds | 18 steps |
| Cross slide travel | 615mm (24-1/5") |
| Top rest travel | 225mm (8-7/8") |
| Rapid traverse | Z :3200 (126"/min), X :1400 (55"/min) |
| Quill diameter | 120mm (4-3/4") |
| Quill travel | 270mm (10-5/8") |
| Quill taper | MT6 |
| Bed width | 610mm (24") |
| Metric threads | 1-240mm, 53 kinds |
| Inch threads | 30-2t pi, 31 kinds |
| Modul threads | 0.25-60mm, 46 kinds |
| Diametral pitch threads | 60-1/2 lpi, 47 kinds |
| Longitudinal feed range | 0.07-16.72mm (0.00276"/rev.-0.658"/rev.) |
| Cross feed range | 0.04-9.6mm (0.00157"/rev.-0.378"/rev.) |
| Main motor power | 11kw (15 hp) |
| Packing size | 5310 x 1400 x 2000mm (209" x 55" x 79") |
| Gross weight/Net weight (Approx) | 6400/6900kg (14,110/15,212 lbs) |
