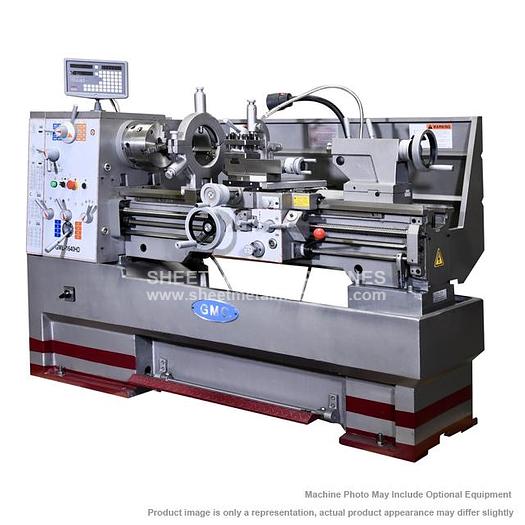

GMC Large Spindle Bore Lathe with DRO GML-1640HD

GMC Large Spindle Bore Lathe with DRO GML-1640HD

$10,950 FREE SHIPPING!

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer GMC Large Spindle Bore Lathe with DRO GML-1640HD ISO 9001 certified Large spindle bore 2-1/16” Heavy Duty spindle D1-6 One-piece solid cast iron machine base Heavy Duty guideway width 10-1/4” Heavy Duty main motor 6 HP 16 spindle speeds from 45-1,800 rpm, speeds: 45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/1800rpm 45 kinds of inch threads, and 39 kinds of metric threads Threading and feeding rate change without changing gears Spindle is balanced, hardened and precision ground Spindle is supported at 3-point by high precision bearings All gears and shafts are hardened and precision ground Guideways induction hardened and precision ground Automatic lubrication system in headstock and feed box

STANDARD ACCESSORIES: Free Taper Turning Attachment, Installed SINO DRO 8” 3-jaw chuck with set reversible jaws 10” 4-jaw chuck with set reversible jaws 12” Face plate 5-1/2” large steady rest with roller jaws Oil pump on Apron for all guideways and leadscrews 2” follow rest Removable gap 4-way tools post Foot brake Halogen Work light and coolant system Full length splash guard (2) dead centers and (1) reducing sleeve MT6/MT4 Thread chasing dial Tool box Leveling pads


OPTIONAL ITEMS - CALL FOR PRICE: PART#MCS-GML-1660HD Micro Carriage Stop Gunsmith adaptor PART#NW840 DRO for Model 1640HD, NEWALL C80 PART#SINO840 DRO SINO for GML-1640HD PART#5C-1660HD 5-C Hand Lever Type Collet Closer PART#900-0014 33 Piece 5C Collet Set, from 1/16 to 1-1/16” by 32ndth PART#900-0051-300 ALORIS Type QC Tool Post Set , 6 pieces PART#900-0050-04 Live Center PART#2003-0004 5 Piece Indexable Carbide Turning Set PART#2003-0014 3/8" Carbide Insert PART#GMCLSUP101 Lathe Package 1: including 5pc Indexable Carbide Turning Set #2003-0004, 1/2 Drill Chuck #700-0102, Chuck Arbor #MT4 and 29pc Titanium Drill Bit Set #5000-0001T

Specifications

ManufacturerGMC Machine Tools
ModelGML-1640HD
ConditionNew
Stock NumberGML-1640HD
Max. swing over bed16-1/16"
Max. length of workpiece40”
Max. swing over cross slide10-1/4”
Max. Swing in gap23-1/4”
Width of Bed10-1/4”
Effective length in gap to spindle8-1/2”
Effective length in gap to chuck jaws3-1/2”
Spindle bore2-1/16” , D1-6
Taper of spindle centerM.T.# 6 ( with MT6/MT4 sleeve)
Spindle speeds45-1,800 rpm / 16 steps
Longitudinal feeds0.0018-0.07 IPR, 42 kinds
Cross feeds0.0009-0.03 IPR, 42 kinds
Inch threads70-2 TPI, 45 kinds
Metric threads0.2-14 mm , 39 kinds
Module threads0.3-3.6 mm, 18 kinds
Diametral pitch threads8-40 DP , 21 kinds
Max. travel of top slide4-1/4”
Max. travel of cross slide8-1/2”
Spindle length w/o chuck20-1/2”
Leadscrew length X TPI1-1/4” x 4 TPI
Diameter of tailstock quill2-1/16”
Max. travel of tailstock quill5”
Taper of tailstock quill centerM.T. # 4
Main motor6 HP, 220V only, 3 phase
Coolant pump motor1/8 HP, 220V only, 3 phase
Net weight, approx.4,150 lbs
Overall dimensions, LxWxH79” x 38” x 56”
