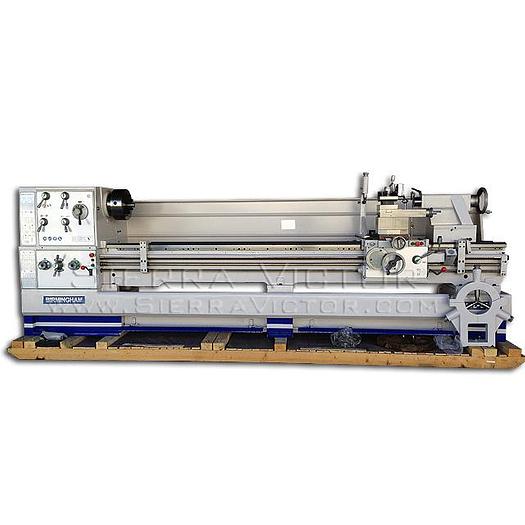

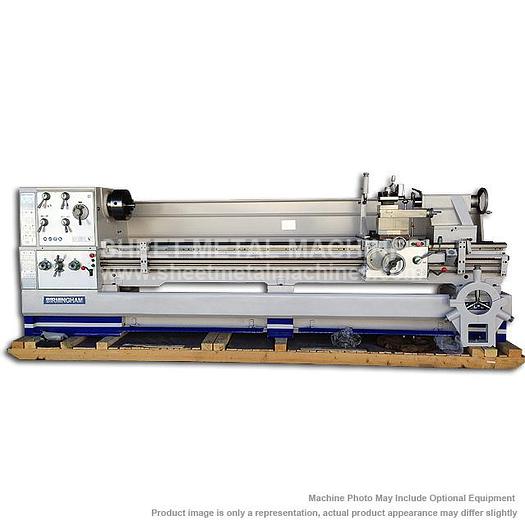

BIRMINGHAM Precision Gap Bed Lathe YCL-32120 32" x 120"
BIRMINGHAM Precision Gap Bed Lathe YCL-32120 32" x 120"
Contact us for price
Description
Please note: many products ship straight from manufacturer BIRMINGHAM Precision Gap Bed Lathe YCL-32120 32" x 120" ITEM: 32" x 120" Precision Gap Bed Lathe MANUFACTURER: BIRMINGHAM MODEL: YCL-32120 STANDARD EQUIPMENT: 3 JAW CHUCK 4 JAW CHUCK FACE PLATE STEADY REST W/ ROLLER JAWS FOLLOW REST GAP 4 WAY TOOL POST THREADING CHASING DIAL ( 2 ) DEAD CENTERS REDUCING SLEEVE FULL LENGTH SPLASH GUARD ONE PIECE CAST IRON BASE FOOT BRAKE HALOGEN WORK LIGHT COOLANT SYSTEM LEVELING PADS 4 POSITION AUTO KICK-OUT LONGITUDINAL CARRIAGE STOP TOOL BOX TAPER TURN ATTACHMENT 10" LARGE STEADY REST W/ ROLLER JAWS 5C HAND LEVER TYPE COLLET CLOSER "JFK" USA 5C COLLET CHUCK (FRONT OPERATE) D1-6 MOUNT DIGITAL READOUT: " NEWALL DP-700 " OR " ACU-RITE " OR " UNIQ IMPORT"
Specifications
| Manufacturer | Birmingham |
| Model | YCL-32120 |
| Condition | New |
| Stock Number | YCL-32120 |
| Swing over cross slide | 22-1/2" |
| Swing in gap diameter | 41" |
| Length of gap | 10" |
| Center height | 16" |
| Distance between centers | 120" |
| Width of bed | 16" |
| Max. section of tool | 1" x 1" |
| Max. travel of cross slide | 16-1/2" |
| Max. travel of compound rest | 9" |
| Spindle nose | D1-8 |
| Taper of spindle bore | Ø133mm (1:20) MT5 |
| Spindle speed step | 16 |
| Range of spindle speed | 25 ~ 1,600 RPM |
| Inch threads range | 7/16 ~ 80 T.P.I. |
| Metric threads range | 0.45 ~ 120mm (54 kinds) |
| Diametrcial pitches range | 7/8 ~ 160DP (42 kinds) |
| Module pitches range | 0.25 ~ 60MP (46 kinds) |
| Cross feeds range in metric lead screw | 0.044 ~ 1.48mm/rev (25 kinds) |
| Cross feeds range in inch lead screw | 0.00165 ~ 0.05497"/rev (25 kinds) |
| Longitudinal feeds range in metric lead screw | 0.022 ~ 0.74mm/rev (25 kinds) |
| Longitudinal feeds range in inch lead screw | 0.00083 ~ 0.02774"/rev (25 kinds) |
| Dia. of tailstock sleeve | 3-1/2" |
| Morse taper of tailstock sleeve | MT5 |
| Power of coolant pump | 1/8 HP |
| Packing size (L x W x H) | 187" x 45" x 75" |
| Net weight | 8,620 lbs. (3,910 kg) |
| Gross weight | 9,921 lbs. (4,500 kg) |
