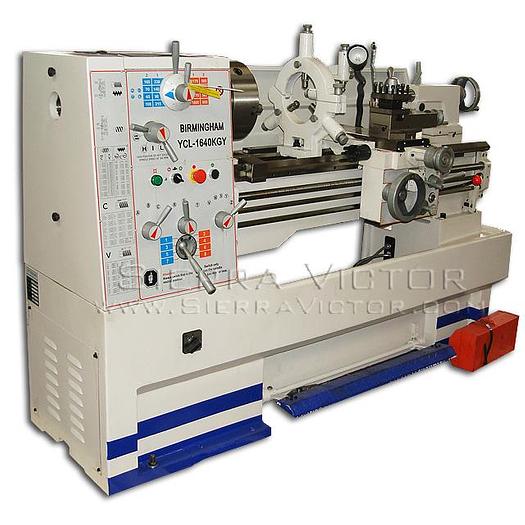

BIRMINGHAM Precision Gap Bed Lathe YCL-1640KGY 16" x 40"
BIRMINGHAM Precision Gap Bed Lathe YCL-1640KGY 16" x 40"
Contact us for price
Description
Please note: many products ship straight from manufacturer BIRMINGHAM 16" x 40" Precision Gap Bed Lathe YCL-1640KGY 16" x 40" STANDARD EQUIPMENT: 10" 3 JAW CHUCK 12" 4 JAW CHUCK FACE PLATE 5-1/8" STEADY REST W/ ROLLER JAWS 4-8/9" FOLLOW REST GAP 4 WAY TOOL POST THREADING CHASING DIAL ( 2 ) DEAD CENTERS REDUCING SLEEVE FULL LENGTH SPLASH GUARD ONE PIECE CAST IRON BASE FOOT BRAKE HALOGEN WORK LIGHT COOLANT SYSTEM LEVELING PADS 4 POSITION AUTO KICK-OUT LONGITUDINAL CARRIAGE TOOL BOX TAPER TURN ATTACHMENT
OPTIONAL ITEMS: CALL FOR PRICE 5C COLLET CHUCK (FRONT OPERATE) D1-6 MOUNT * DIGITAL READOUT: " NEWALL DP-700 " OR " UNIQ IMPORT"
Specifications
| Manufacturer | Birmingham |
| Model | YCL-1640KGY |
| Condition | New |
| Stock Number | YCL-1640KGY |
| Swing Over Cross Slide | 10" |
| Swing in gap | 23-1/4" (590mm) |
| Distance between centers | 40" |
| Center height | 42.2" (1073mm) |
| Width of bed | 10" |
| Spindle nose | 2" (52mm) |
| Taper of spindle bore | No.6 Morse |
| Range of spindle speeds | 16 changes 45-1800r/min |
| Max. travel of cross slide | 8-1/4" |
| Leadscrew pitch | 4 T.P.I. |
| Max. Section of tool | 13/16" |
| Longitudinal feeds range | 0.05-1.7mm/rev (0.002"-0.067"/rev) |
| Cross feeds range | 0.025-0.85mm/rev (0.001"-0.0335"/rev) |
| Metric threads range | 39 kinds 0.2-14mm |
| Inch threads range | 45 kinds 272 T.P.I. |
| Diametrical pitches range | 21 kinds 8-44 D.P. |
| Module pitches range | 18 kinds 0.3-3.5 M.P. |
| Morse taper of tailstock sleeve | No. 4 Morse |
| Cross adjustment | ±12" (±13mm) |
| Power of coolant pump | 1/8 HP, 3 ph |
