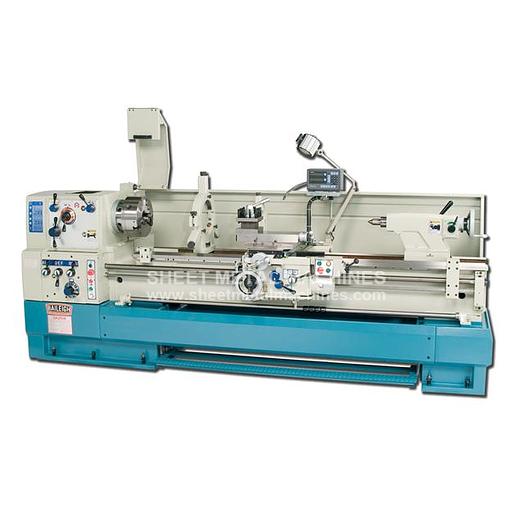

BAILEIGH Precision Metal Lathe PL-2080

BAILEIGH Precision Metal Lathe PL-2080

$36,195

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

  • Everything about the PL-2080 industrial lathe is powerful, from its hardened slideways to the cast iron base. This engine lathe also includes a Mitutoyo DRO.
  • 12 speeds from 20 to 1,500 rpm.
  • 15 hp motor runs on 220-volt 3-phase power.
  • Capable of making metric or standard threads.
  • Mitutoyo 2-axis digital readout (DRO) system helps you obtain precise results.
  • Polished ways with integrated wipers move as smoothly as the day they were made for years.
  • Square indexing tool post.
  • Lathe body is made from the best iron castings to ensure a rigid and stable platform.
  • Cast pieces are fully integrated with the head stock, so every joint is tight.
  • No assembly required.
  • Comes standard with:
  • 3-jaw universal chuck (12”).
  • 10” back plate.
  • Micrometer saddle stop.
  • Steady rest and follow rest.
  • Longitudinal rapid traverse.
  • Headstock chuck guard with automatic safety switch.
  • Coolant system with rear splash guard.
  • Halogen work light.
  • Emergency foot brake.
  • Covered by a 1-year parts warranty.
  • Replacement parts are in stock for fast shipping from our Wisconsin headquarters.
  • We include lifetime technical support by phone from our team of reps with hands-on metalworking experience.

ITEM: 20" x 80" Precision Metal Lathe MANUFACTURER: BAILEIGH MODEL: PL-2080

Specifications

ManufacturerBaileigh Industrial
ModelPL-2080
ConditionNew
Stock NumberPL-2080
Country of ManufactureTaiwan
Speed20 – 1550 rpm
Spindle Bore3.125"
Spindle NoseD1-8"
Threads Diametrical Qty Speed50 / 4–112 D.P.
Threads Imperial Qty Speed60 / 2–112 T.P.I.
Threads Metric Qty Speed60 / .2–14 mm pitch
Threads Module Qty Speed50 / .2-7 M.P.
Spindle Taper SleeveMorse #5
Spindle Taper NoseMorse #7
Tailstock Quill Dia2.9375"
Tailstock Quill TaperMorse #5
Tailstock Quill Travel6.3125"
Compound Rest Width10"
Center Length80.313"
Center Height10"
Bed Height16.125"
Longitudinal Feeds Metric Qty Speed50 / .037 – .983 mm / rev.
Main Motor15 HP
Longitudinal Feeds Imperial Qty Speed50 / .0014" – .0387" / rev.
Lead Screw Diameter1.5"
Lead Screw Thread Pitch4 T.P.I.
Max. Swing In Gap Length7.0625"
Max. Swing Over Bed20"
Max. Swing Over Cross Slide13"
Max. Swing In Gap Dia26.375"
Cross Feeds Imperial Qty Speed50 / .0007" – .01935" / rev.
Cross Feeds Metric Qty Speed50 / .0185 – .52 mm / rev.
Cross Slide Travel12.5"
Power220V / 3-phase
Shipping Dimensions (L/W/H)121" x 54" x 67"
Shipping Weight6,050 lbs.
