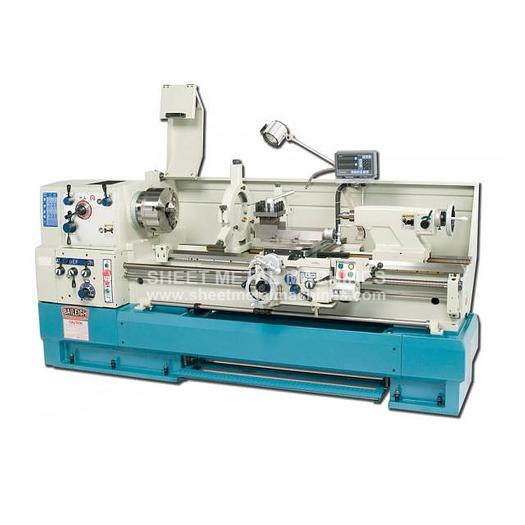

BAILEIGH Gap Bed Lathe PL-2060

BAILEIGH Gap Bed Lathe PL-2060
$35,216
Description
Please note: many products ship straight from manufacturer BAILEIGH Gap Bed Lathe PL-2060 Perfectly sized for most machine or fab shops, the PL-2060 can go head-to-head with any lathe on the market. Its Mitutoyo DRO, ground ways, and cast iron base help ensure accuracy.
- 12 speeds between 20 and 1,550 rpm.
- 15 hp motor runs on 220-volt 3-phase power to handle the most demanding jobs.
- Capable of making metric or standard threads.
- No assembly required.
- Factory-installed Mitutoyo digital readouts for both the X- and Y-axis help you easily make precise cuts.
- Polished ways have integrated wipers to keep them moving like the day they were made.
- Square-indexing tool post.
- Base made from cast iron that’s precisely machined to exacting tolerances and sourced from the best casting suppliers.
- Comes standard with:
- 3-jaw chuck (12”).
- Headstock chuck guard with automatic safety switch.
- 8” back plate.
- Steady rest and follow rest.
- Longitudinal rapid traverse.
- Micrometer saddle stop.
- Coolant system with rear splash guard.
- Halogen work light.
- Emergency foot brake.
- Covered by a 1-year parts warranty.
- We keep replacement parts in stock and ship them out quickly from our Wisconsin headquarters.
- You can count on lifetime technical support by phone from our team of experienced metalworkers.
ITEM: 20" x 60" Gap Bed Lathe MANUFACTURER: BAILEIGH MODEL: PL-2060
Specifications
Manufacturer | Baileigh Industrial |
Model | PL-2060 |
Condition | New |
Stock Number | PL-2060 |
Country of Manufacture | Taiwan |
Speed | 20 – 1550 rpm |
Spindle Bore | 3.125" |
Spindle Nose | D1-8" |
Threads Diametrical Qty Speed | 50 / 4–112 D.P. |
Threads Imperial Qty Speed | 60 / 2–112 T.P.I. |
Threads Metric Qty Speed | 60 / .2–14 mm pitch |
Threads Module Qty Speed | 50 / .2-7 M.P. |
Spindle Taper Sleeve | Morse #5 |
Spindle Taper Nose | Morse #7 |
Tailstock Quill Dia | 2.9375" |
Tailstock Quill Taper | Morse #5 |
Tailstock Quill Travel | 6.3125" |
Compound Rest Width | 10" |
Center Length | "60 |
Center Height | 10" |
Bed Height | 16.125" |
Longitudinal Feeds Metric Qty Speed | 50 / .037 – .983 mm / rev. |
Main Motor | 15 HP |
Longitudinal Feeds Imperial Qty Speed | 50 / .0014" – .0387" / rev. |
Lead Screw Diameter | 1.5" |
Lead Screw Thread Pitch | 4 T.P.I. |
Max. Swing In Gap Length | 7.0625" |
Max. Swing Over Bed | 20" |
Max. Swing Over Cross Slide | 13" |
Max. Swing In Gap Dia | 26.375" |
Cross Feeds Imperial Qty Speed | 50 / .0007" – .01935" / rev. |
Cross Feeds Metric Qty Speed | 50 / .0185 – .52 mm / rev. |
Cross Slide Travel | 12.5" |
Power | 220V / 3-phase |
Shipping Dimensions (L/W/H) | 121" x 54" x 67" |
Shipping Weight | 5,456 lbs. |
