BAILEIGH Bench Lathe PL-1022VS

BAILEIGH Bench Lathe PL-1022VS


orCall 386-304-3720

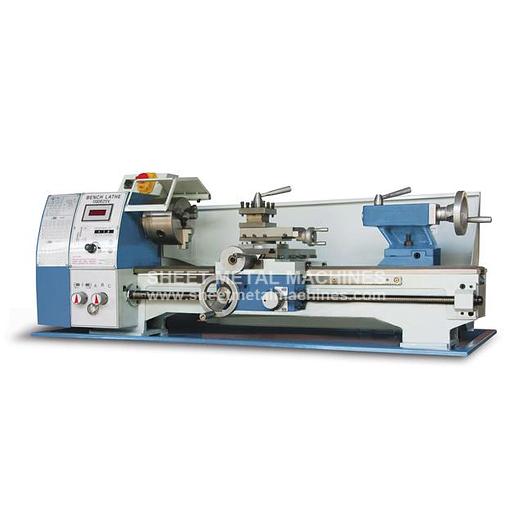

Please note: many products ship straight from manufacturer BAILEIGH 10" x 22" Bench Lathe PL-1022VS

Built from quality components, like ground and hardened ways, this variable-speed benchtop lathe will last for many years. It comes standard with a DRO, 2 chucks, and a steady rest.

  • This benchtop metal lathe is recommended for small machine shops.
  • 50 to 2,000 rpm adjustable speed.
  • Digital readout (DRO) for turning speed.
  • Powerful 110-volt 1 hp motor can run wherever you have a standard outlet.
  • Capable of making both metric and standard threads.
  • Steady rest and follow rest minimize shaft wobbling and maintain high accuracy.
  • Includes 3-jaw and 4-jaw chucks to hold both square and rounded materials.
  • Standard tool post screws and unscrews to accept tooling.
  • Catch pan contains the mess if you’re spraying coolant.
  • Covered by a 1-year parts warranty.
  • Replacement parts kept in stock at our Wisconsin headquarters for fast shipping.
  • You can count on lifetime technical support by phone from our in-house team of metalworking experts.

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



ManufacturerBaileigh Industrial
Stock NumberPL-1022VS
Spindle Speeds50-2000 rpm (Variable)
Chuck Diameter4.92"
Tool Slide Travel1.89"
Spindle Accuracy.001"
Range Of Metric Threads0.4 - 3.4 mm
Spindle Bore1"
Range Of Inch Threads8 - 56 T,P.I.
Motor1 HP
Taper Of Tailstock QuillMT 2
Swing Over Bed9.75"
Shipping Dimensions46" x 22" x 23"
Shipping Weight403 lbs.
