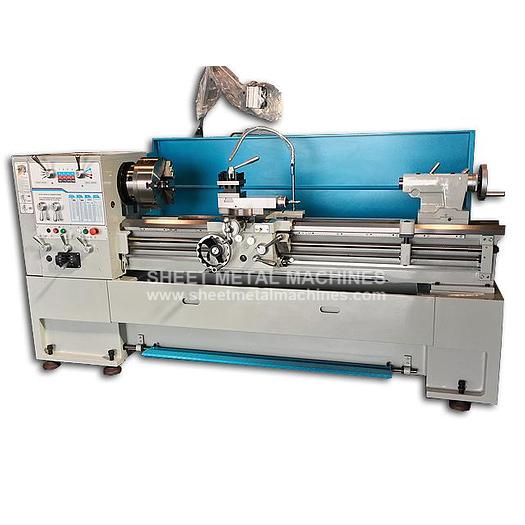

ACRA Precision High Speed EVS Engine Lathe (3-1/8" Large Bore) 1740EVS

ACRA Precision High Speed EVS Engine Lathe (3-1/8" Large Bore) 1740EVS

$22,450

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ACRA 17-21" x 40-90" Precision High Speed EVS Engine Lathe (3-1/8" Large Bore) 1740EVS Made in Taiwan - High Quaility! BED: One-piece casting base Meehanite casting, vibration stress relieved Induction hardened and precision ground bed ways, precision hand scraped removable gap Foot Brake Turcite B Coating between bed and carriage CARRIAGE & SLIDE: Anti-float design backlash eliminator Safety clutch at feed shaft One shot lubrication in carriage & top slide Dual dials supply inch system screw Metric dial supply metric system only SAFETY FEATURES: Nylon safety gears in end train Shear pin in leadscrew HEAVY DUTY SPINDLE: Machined from forged alloy steel, hardened ground & dynamically balanced Three point support by high grade precision, machine tool taper roller & ball bearings APRON: R/H or L/H wheel can be available on request Integrated automatic control for longitudinal & cross feeds, forward & reverse feeds GEAR BOX: Universal type allowing a wide range of inch, metric, M.P., D.P. threads without change gears. HEADSTOCK: Housing is vibration-absorbent, deflection-free Gears are hardened & MAAG or REISHAUER ground

STANDARD EQUIPMENT: 17" LATHE 10" 3-Jaw Chuck 12" 4-Jaw Chuck Steady Rest w/Ball Bearing Follow Rest w/Bronze Tip Chuck Guard Halogen Light Full Length Splash Guard Dead Center MT.5 made of carbon steel Dead Center MT.4 with carbide tip Spindle center sleeve Ø85mm Taper 1/19.18 x MT.5 Level pads 6pcs Tool set and box Operation manual and parts list STANDARD EQUIPMENT: 21" LATHE 12" 3-Jaw Chuck 16" 4-Jaw Chuck Steady Rest w/Ball Bearing Follow Rest w/Bronze Tip Chuck Guard Halogen Light Full Length Splash Guard Dead Center MT.5 made of carbon steel Dead Center MT.4 with carbide tip Spindle center sleeve Ø85mm Taper 1/19.18 x MT.5 Level pads 6pcs Tool set and box Operation manual and parts list

ITEM: 17-21" x 40-90" Precision High Speed EVS Engine Lathe (3-1/8" Large Bore) MANUFACTURER: ACRA MODEL: 1740EVS


OPTIONAL ITEMS: 5C collet closer attachment 5C collets (metric or imperial) Driving plate with dog Hydraulic copying attachment Tool post grinder attachment Taper turning attachment Electrical system for CE Protection cover on leadscrew for CE Faceplate 14" Drill chuck and arbor Rotating center MT.4 Quick change tool post Carriage micro stop set Digital read out system 2 Speed tailstock - Dual Feed Rate Tailstock: The tailstock incorporates a dual feed rate system by means of reduction gears, ensuring smoother drilling operations with increased power.

Specifications

ManufacturerACRA
Model1740EVS
ConditionNew
Stock Number1740EVS
Distance Between Centers1000mm (40") 1500mm (60") 2200mm (86.6")
Width of Bed320mm (12.5")
Spindle Center Sleeve:Ø85mm Taper 1/19.18 x MT No.5
Spindle BoreØ80mm (3.149")
Spindle Speeds – Gear Steps/RangeL: 20 ~ 100 R.P.M
Top Slide Travel150mm (5.9")
Metric threads: Kinds / Range39 Kinds / 0.2 ~ 14mm
D.P. threads: Kinds / Range21 Kinds / 8 ~ 44 D.P.
M.P. threads: Kinds / Range18 Kinds / 0.3 ~ 3.5 M.P.
Longitudinal feeds0.04 ~ 1.0mm (0.0015" ~ 0.04")
Cross feeds0.02 ~ 0.5mm (0.00075" ~ 0.02")
Quill Travel:127mm (5")(40,60), 153mm (6")(80)
Taper CenterMT. No.4
Forced Lubrication for HD.1/4 HP
Coolant Pump1/8 HP
Width x Height45.5" (1155mm) x 72.8" (1850mm)
