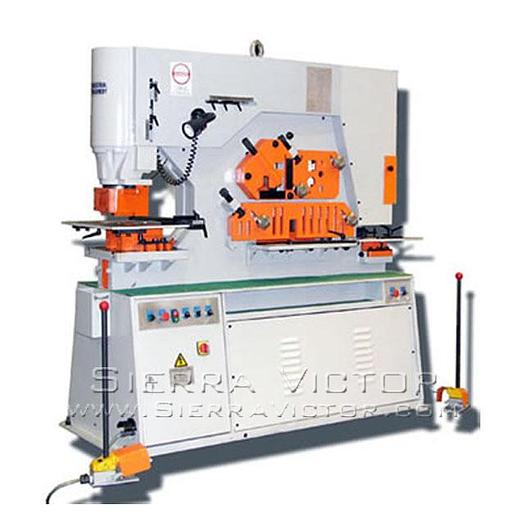

U.S. INDUSTRIAL Hydraulic Ironworker USHI-125T-DO-XT

U.S. INDUSTRIAL Hydraulic Ironworker USHI-125T-DO-XT

$45,195 Call for Freight Specials

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer U.S. INDUSTRIAL 125 Ton Hydraulic Ironworker USHI-125T-DO-XT

  • Dual hydraulic cylinders for two man operation with two moveable foot pedals
  • Five workstations: punch, plate shear, angle shear, rod shear and notcher. This machine also comes with a press brake attachment.
  • Punch station has large two-piece gauging table with fence
  • Punch station has quick acting swing-away stripper with 3 inserts
  • Punch station has removable sections for punch leg of channel or I-beam
  • Quick change coupling nut and sleeve for punch
  • Electric backgauge, 3’ long
  • Electrically interlocked safety guard for notching station
  • Magnetic base workstation light
  • 15 HP, 3-phase operation
  • This machine weighs 10,560 lbs.
  • Three sets of round punch and die
  • Spare parts and tools
  • *Bar Shear gapped for 1/4" thickness and up. Cutting gauge thickness may require shimming to reduce gap.
  • *Notcher station not gapped for small gauge thickness. Must centerload heavy notches.


OPTIONAL ITEMS: CALL FOR PRICE

  • Optional ROUND Punch & Die SET

Optional ROUND Punch & Die SET: Punch and die sets are a great way to stock your punch and die inventory. This set is in stock and includes 12-F26 Round punches, 12-F62 Round dies, Half pint of Punch-Easy, and Tool Box.

Additional information: Punch and die sizes include:

F26 punch: 1/4", 3/8", 1/2", 5/8", 3/4", 13/16", 15/16", 1", 1-1/16", 1-3/16", 1-1/4", 1-1/2"

F62 die: 9/32", 13/32", 9/16", 11/16", 13/16", 7/8", 1", 1-1/16", 1-1/8", 1-1/4", 1-5/16", 1-9/16"


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerUS Industrial
ModelUSHI-125T-DO-XT
ConditionNew
Stock NumberUSHI-125T-DO-XT
Punch Tonnage125
Punching Thickness1"
Punching Diameter1-1/2"
Throat Depth24"
Stroke Length0" - 3 1/8"
Flat Bar Shear Max. Thickness14" W x 1" Thick
Flat Bar Max. Length23.5" W x 5/8" Thick
Flat Bar Blade Length23.5"
Angle Shear Capacity 90°6" x 6" x 5/8"
Angle Shear Capacity 45°3" x 3" x 1/4"
Bar Shear Round2-3/8"
Bar Shear Square2-1/8"
Notcher Thickness1/2"
Notcher Width2-1/4"
Notcher Depth4"
Motor15 HP, 3- phase
Electrical220V or 440V, 3-phase (specify)
Oil Capacity33 gals
Machine Dimensions92" x 37" x 82"
Machine weight approx.10,560 lbs
