U.S. INDUSTRIAL Hydraulic Ironworker USHI-125T-DO

U.S. INDUSTRIAL Hydraulic Ironworker USHI-125T-DO


orCall 386-304-3720

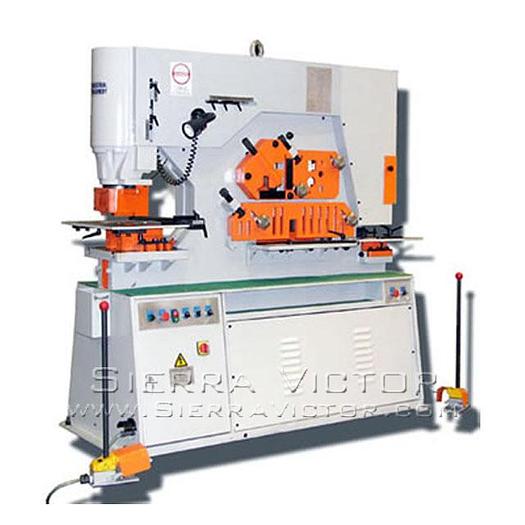

Please note: many products ship straight from manufacturer U.S. INDUSTRIAL 125 Ton Hydraulic Ironworker USHI-125T-DO Dual Hydraulic cylinders for two-man operation with two movable foot pedals Five workstations: punch, plate shear, angle shear, rod shear notcher. This machine also comes with a press brake attachment. Punch station has large two-piece gauging table with fence Punch station has quick acting swing-away stripper with 3 inserts Punch station has removable sections for punch leg of channel or I-beam Quick change coupling nut and sleeve for punch Brake attachment Electric backgauge, 3' long Electrically interlocked safety guard for notching station Magnetic base workstation light Three sets of round punch and die Spare parts and tools


ManufacturerUS Industrial
Stock NumberUSHI-125T-DO
Punch Tonnage125
Punching Thickness1"
Punching Diameter1-1/2"
Throat Depth16"
Stroke Length0" - 3 1/8"
Flat Bar Shear Max. Thickness14' x 1"
Flat Bar Max. Length23.5" x 5/8"
Flat Bar Blade Length23.5"
Angle Shear Capacity 90°6" x 6" x 5/8"
Angle Shear Capacity 45°3" x 3" x 1/4"
Bar Shear Round2-3/8"
Bar Shear Square2-1/8"
Notcher Thickness1/2"
Notcher Width2-1/4"
Notcher Depth4"
Motor15 HP, 3- phase
Oil Capacity33 gals
Machine Dimensions92" x 37" x 82"
Machine weight approx.10,560 lbs
