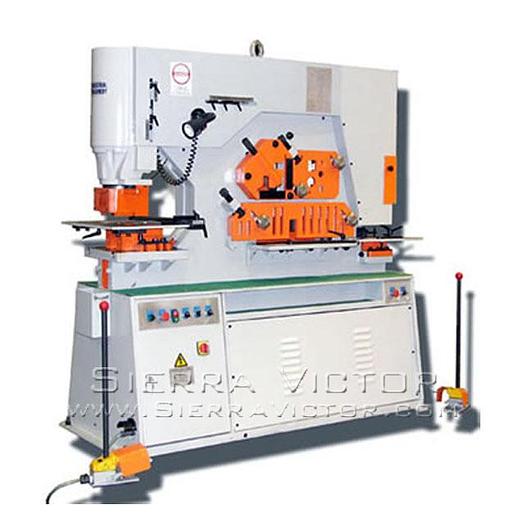

U.S. INDUSTRIAL Hydraulic Ironworker USHI-66T-DO-XT

U.S. INDUSTRIAL Hydraulic Ironworker USHI-66T-DO-XT
$22,990 Call for Freight Specials
Description
Please note: many products ship straight from manufacturer U.S. INDUSTRIAL 66 Ton Hydraulic Ironworker USHI-66T-DO-XT
- Dual Hydraulic cylinders for two-man operation with two movable foot pedals
- Five workstations: punch, plate shear, angle shear, rod shear notcher plus brake attachment
- Punch station has large two-piece gauging table with fence
- Punch station has quick acting swing-away stripper with 3 inserts
- Punch station has removable sections for punch leg of channel or I-beam
- Quick change coupling nut and sleeve for punch
- Electric backgauge, 3' long
- Electrically interlocked safety guard for notching station
- Magnetic base workstation light
- Three sets of round punch and die
- Spare parts and tools
- *Flat bar shear station - Bar shear gapped for 1/4" thickness and up. Cutting gauge thickness may require shimming to reduce gap. With squaring arm removed
- *Rectangular notcher station - Notcher station no gapped for small gauge thickness. Must centerload heavy notches.
- This model usually in stock. Call to confirm delivery
OPTIONAL ITEMS: CALL FOR PRICE
- Optional ROUND Punch & Die SET
Optional ROUND Punch & Die SET: Punch and die sets are a great way to stock your punch and die inventory. This set is in stock and includes 12-F26 Round punches, 12-F62 Round dies, Half pint of Punch-Easy, and Tool Box.
Additional information: Punch and die sizes include:
F26 punch: 1/4", 3/8", 1/2", 5/8", 3/4", 13/16", 15/16", 1", 1-1/16", 1-3/16", 1-1/4", 1-1/2"
F62 die: 9/32", 13/32", 9/16", 11/16", 13/16", 7/8", 1", 1-1/16", 1-1/8", 1-1/4", 1-5/16", 1-9/16"
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
Manufacturer | US Industrial |
Model | USHI-66T-DO-XT |
Condition | New |
Stock Number | USHI-66T-DO-XT |
Punch Tonnage | 66 |
Punching Thickness | 5/8" |
Punching Diameter | 1-1/4" |
Throat Depth | 17" |
Stroke Length | 0" - 3 1/8" |
Flat Bar Shear Max. Thickness | 12" W x 5/8" Thick |
Flat Bar Max. Length | 16" W x 5/16" Thick (with squaring arem removed) |
Flat Bar Blade Length | 16" |
Angle Shear Capacity 90° | 5" x 5" x 3/8" |
Angle Shear Capacity 45° | 2" x 2" x 1/4" |
Bar Shear Round | 1-3/4" |
Bar Shear Square | 1-5/8" |
Notcher Thickness | 3/8" |
Notcher Width | 2-1/4" |
Notcher Depth | 4" |
Motor | 7.5 HP |
Electrical | 220V or 440V, 3-phase (specify) |
Oil Capacity | 20 gals. |
Machine Dimensions | 64" x 28" x 69" |
Machine weight approx. | 3,527 lbs |
