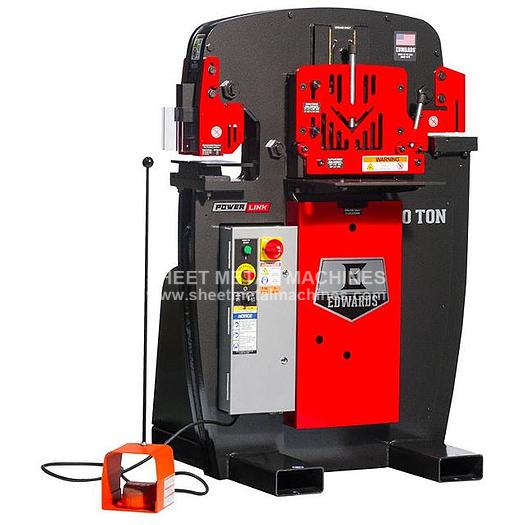

EDWARDS 50 Ton Hydraulic Ironworker IW50

EDWARDS 50 Ton Hydraulic Ironworker IW50


orCall 386-304-3720


Please note: many products ship straight from manufacturer EDWARDS 50 Ton Hydraulic Ironworker IW50 The Edwards 50 Ton JAWS Ironworker is the ideal Ironworker for the small shop that needs a powerful, versatile tool for all kinds of tasks. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a dedicated Coper Notcher station. The Punch Assembly quickly converts to an open tooling station designed to accept optional Tooling Accessories. The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press. Four Available Workstations Punch Assembly Designed for Optional Tooling Dedicated Coper Notcher Station Electric Stroke Control ANSI B11.5-1988R(02) Compliant ETL/UL Approved Controls MADE IN THE USA ITEM: 50 Ton Hydraulic Ironworker MANUFACTURER: EDWARDS MODEL: IW50 OPTIONAL ATTACHMENTS - CALL FOR PRICE PART # ITEM — STANDARD PUNCH ASSEMBLY AC1024 OVERSIZED PUNCH ASSEMBLY AC1055 241 PUNCH ASSEMBLY AC0125-1 ANGLE NOTCHER Standard COPER NOTCHER AC0925 PIPE NOTCHER HOUSING — PIPE NOTCHER HOUSING, OPEN CAVITY AC0925T TURRET PIPE NOTCHER HOUSING AC1075 MULTI-SHEAR AC1074 ROD SHEAR AC1033 7" BRAKE WITH 4-WAY DIE AC1034 8" BRAKE WITH 4-WAY DIE — 10" BRAKE WITH 4-WAY DIE — 10" BRAKE WITH 4-WAY DIE, OPEN CAVITY — 12" BRAKE WITH 4-WAY DIE OPTIONAL ACCESSORIES - CALL FOR PRICE PART # ITEM AC0900 GAUGING TABLE KIT AC0903 HEAVY DUTY GAUGING TABLE KIT AC0905 HEAVY DUTY GAUGING TABLE KIT FOR OVERSIZE PUNCH ASSEMBLY — COPER NOTCHER GAUGING TABLE KIT AC1914-3 STRIPPER REDUCING PLATE AC1099 URETHANE STRIPPER AC1001 QUICK CHANGE PUNCH ASSEMBLY AC1010 48" AUTO CUT AC1011 48" BACK GAUGE PR135 PRESS BRAKE BACK GAUGE PD1000 PUNCH & DIE STARTER SET AC1000 ACCESSORY LED LIGHT AC1017 FABRICATOR'S PROTRACTOR AC1910 FENCE GUIDES, SHORT 12", STANDARD HANDLES AC1911 FENCE GUIDES, LONG 18", STANDARD HANDLES AC1912 FENCE GUIDES, SHORT 12", HANDLES FOR HEAVY DUTY TABLE AC1913 FENCE GUIDES, LONG 18", HANDLES FOR HEAVY DUTY TABLE AC2000 PRODUCTIVITY PACKS


ManufacturerEdwards Ironworkers
Stock NumberIW50-1P230
Rating50 Tons
Throat Depth (in.)7
Open Height (in.)8-1/8
Shut Height (in.)6-1/4
Stroke (in.)1-7/8
Work Height (in.)39-1/2
Max. Round Capacity (in.)3/4
Max. Square Capacity (in.)3/4
Optional5 HP 3~ 460V, 1725 RPM 7 A 5 HP 3~ 575V, 1725 RPM 6 A 5 HP 1~ 230V, 1725 RPM 23 A
Hydraulic Pump Size (GPM)3-1/2 - single stage
Valve Pressure (PSI)2,500
Reservoir (gallons)7
Cylinder (in.)2-1/2" ram
Width (in.)36-3/4
Depth (in.)36-1/8
Shipping Weight (lb.)2,020
