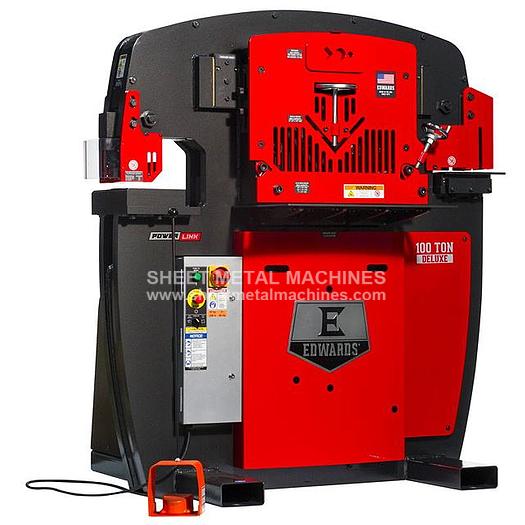

EDWARDS 100 Ton Deluxe Ironworker IW100DX

EDWARDS 100 Ton Deluxe Ironworker IW100DX

$40,999 More Voltages available - Please Contact

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer EDWARDS 100 Ton Deluxe Ironworker IW100DX 230V, 3PH A brute of an Ironworker, the Edwards 100 Ton Deluxe JAWS Ironworker features super-duty construction and a powerful 10hp motor. Standard features include a Punch Assembly, 18" wide Flat Bar Shear, Angle Shear, Coper Notcher and a special built-in Rod Shear for solid square and round bar stock. The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press. Five Loaded Workstations Built-in Rod Shear for Square and Round Bar 18" Flat Bar Shear Dedicated Coper Notcher Electric Stroke Control ANSI B11.5-1988R(02) Compliant ETL/UL Approved Controls MADE IN THE USA OPTIONAL ITEMS:

PLEASE CALL US FOR OTHER AVAILABLE CONFIGURATIONS & ACCESSORIES: 386-304-3720

Show All

Specifications

ManufacturerEdwards Ironworkers
ModelIW100DX
ConditionNew
Stock NumberIW100DX-3P230
Maximum Capacity (in.)1-1/16" Dia. in 1" A36 (65,000 PSI Tensile)
Throat Depth (in.)11
Open Height (in.)8-3/4
Shut Height (in.)6-13/16
Stroke (in.)1-15/16
Work Height (in.)54-1/2
Max. Round Capacity (in.)1
Max. Square Capacity (in.)1
Max Square Capacity (in.)1-1/4
Optional10 HP 3~ 460V, 1770 RPM 12 A 10 HP 3~ 575V, 1770 RPM 10 A 10 HP 1~ 230V, 1740 RPM 40 A
Hydraulic Pump Size (GPM)24
Valve Pressure (PSI)3,800
Reservoir (gallons)17
Cylinder (in.)2-1/2 ram
Width (in.)56
Depth (in.)45-1/2
Weight (lb.)5,180
