EDWARDS 75 Ton Ironworker IW75
EDWARDS 75 Ton Ironworker IW75
$19,399 FREE General Productivity Pack based on your Ironworker purchase - Runs from 4/1-30/2021
Description

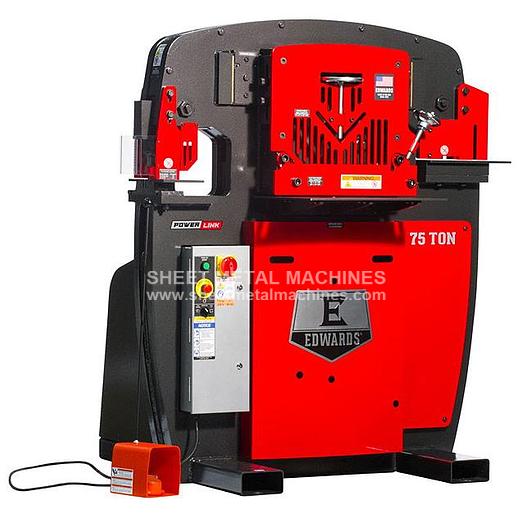

Please note: many products ship straight from manufacturer EDWARDS 75 Ton Ironworker IW75 230V, 3PH The Edwards 75 Ton JAWS Ironworker offers you greater capacity to accomplish larger tasks. Its standard features include a Punch Assembly with Pedestal Die Table, a 14" wide Flat Bar Shear, Angle Shear and Coper Notcher. The Punch Assembly is easily converted to an open station designed to accept optional Tooling Accessories, allowing flexibility to customize your Ironworker according to your needs. The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press. Four Available Workstations Punch Assembly Designed for Optional Tooling Dedicated Coper Notcher Station Electric Stroke Control ANSI B11.5-1988R(02) Compliant ETL/UL Approved Controls MADE IN THE USA OPTIONAL ITEMS:
PLEASE CALL US FOR OTHER AVAILABLE CONFIGURATIONS & ACCESSORIES: 386-304-3720
Specifications
| Manufacturer | Edwards Ironworkers |
| Model | IW75 |
| Condition | New |
| Stock Number | IW75-3P230 |
| Rating | 75 Tons |
| Throat Depth (in.) | 10 |
| Open Height (in.) | 8-3/4 |
| Shut Height (in.) | 6-15/16 |
| Stroke (in.) | 1-13/16 |
| Work Height (in.) | 42 |
| Max. Round Capacity (in.) | 1 |
| Max. Square Capacity (in.) | 1 |
| Width (in.) | 50 |
| Depth (in.) | 45 |
| Shipping Weight | 4,100 lbs. |
| Optional | 7.5 HP 3~ 460V, 1765 RPM 11 A7.5 HP 3~ 575V, 1770 RPM 8 A5 HP 1~ 230V, 1725 RPM 23 A*7.5 HP 1~ 230V, 1765 RPM 36 A |
| Hydraulic Pump Size (GPM) | 10-1/2 - 2 stage |
| Valve Pressure (PSI) | 3,500 |
| Reservoir (gallons) | 17 |
| Cylinder (in.) | 3-1/2 ram |
