EDWARDS 65 Ton Ironworker IW65

EDWARDS 65 Ton Ironworker IW65

$19,899 FREE General Productivity Pack based on your Ironworker purchase - Runs from 4/1-30/2021

orCall 386-304-3720

Description

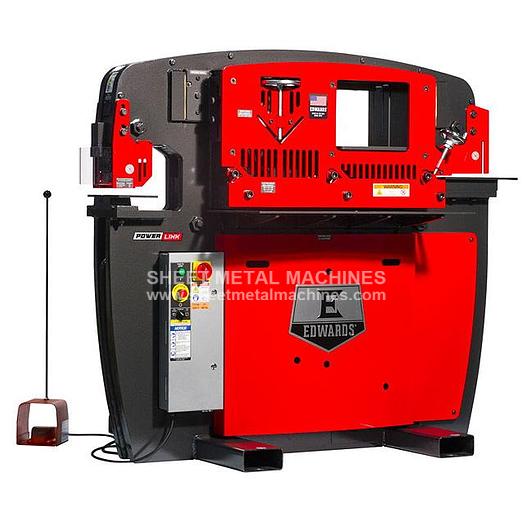

Please note: many products ship straight from manufacturer EDWARDS 65 Ton Ironworker IW65 230V, 3PH The five workstations of the Edwards 65 Ton JAWS Ironworker give you the power to handle any size job and the flexibility to tailor it to your specific needs. Standard features include a Punch Assembly with Pedestal Die Table, 24" wide Flat Bar Shear, Angle Shear, Coper Notcher and a universal open tooling station designed for optional Tooling Accessories. The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press. Five Available Workstations Universal Open Tooling Station 24" Flat Bar Shear Dedicated Coper Notcher Electric Stroke Control ANSI B11.5-1988R(02) Compliant ETL/UL Approved Controls MADE IN THE USA

ITEM: 65 Ton Hydraulic Ironworker 230V, 3PH MANUFACTURER: EDWARDS MODEL: IW65 OPTIONAL ITEMS:

PLEASE CALL US FOR OTHER AVAILABLE CONFIGURATIONS & ACCESSORIES: 386-304-3720

Specifications

ManufacturerEdwards Ironworkers
ModelIW65
ConditionNew
Stock NumberIW65-3P230
Rating65 Tons
Throat Depth (in.)9-3/4
Open Height (in.)8-1/8
Shut Height (in.)6-3/4
Stroke (in.)1-3/8
Work Height (in.)43
Max. Round Capacity (in.)1
Max. Square Capacity (in.)1
Width (in.)62-1/8
Depth (in.)45
Shipping Weight4,750 lbs.
Optional7.5 HP 3~ 460V, 1765 RPM 11 A7.5 HP 3~ 575V, 1770 RPM 8 A5 HP 1~ 230V, 1725 RPM 23 A*7.5 HP 1~ 230V, 1765 RPM 36 A
Hydraulic Pump Size (GPM)10-1/2 - 2 stage
Valve Pressure (PSI)3,500
Reservoir (gallons)17
Cylinder (in.)3-1/2 ram
