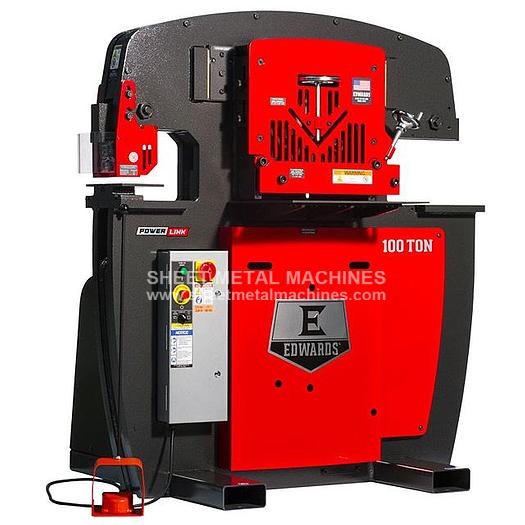

EDWARDS 100 Ton Ironworker IW100
EDWARDS 100 Ton Ironworker IW100
$22,599
Description
Please note: many products ship straight from manufacturer EDWARDS 100 Ton Ironworker IW100 230V, 3PH
OTHER VOLTAGES AVAILABLE - CALL FOR PRICE/AVAILABILITY If you're looking for versatility and power, the Edwards 100 Ton JAWS Ironworker is perfect for your shop. Standard features include a Punch Assembly, a 14" wide Flat Bar Shear, a high capacity Angle Shear and a universal open tooling station designed for optional Tooling Accessories allowing you to select the perfect tool for your needs. The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press. Four Available Workstations High Capacity Angle Shear Universal Open Tooling Station Electric Stroke Control ANSI B11.5-1988R(02) Compliant ETL/UL Approved Controls MADE IN THE USA
ITEM: 100 Ton Hydraulic Ironworker MANUFACTURER: EDWARDS MODEL: IW100
OPTIONAL ITEMS:
PLEASE CALL US FOR OTHER AVAILABLE CONFIGURATIONS & ACCESSORIES: 386-304-3720 OPTIONAL ATTACHMENTS - CALL FOR PRICE PART #AC1023-3: STANDARD PUNCH ASSEMBLY PART #AC1024: OVERSIZED PUNCH ASSEMBLY PART #AC1055-2: 241 PUNCH ASSEMBLY PART #AC0125: ANGLE NOTCHER PART #Standard: COPER NOTCHER PART #AC0925: PIPE NOTCHER HOUSING PIPE NOTCHER HOUSING, OPEN CAVITY PART #AC0925T: TURRET PIPE NOTCHER HOUSING PART #AC1075: MULTI-SHEAR PART #AC1074: ROD SHEAR PART #AC1033: 7" BRAKE WITH 4-WAY DIE PART #AC1034: 8" BRAKE WITH 4-WAY DIE PART #AC1051: 10" BRAKE WITH 4-WAY DIE 10" BRAKE WITH 4-WAY DIE, OPEN CAVITY PART #AC1035: 12" BRAKE WITH 4-WAY DIE
OPTIONAL ACCESSORIES - CALL FOR PRICE PART #AC0900: GAUGING TABLE KIT AC0903: HEAVY DUTY GAUGING TABLE KIT AC0905: HEAVY DUTY GAUGING TABLE KIT FOR OVERSIZE PUNCH ASSEMBLY AC0800: COPER NOTCHER GAUGING TABLE KIT AC1914-3: STRIPPER REDUCING PLATE AC1099: URETHANE STRIPPER AC1001: QUICK CHANGE PUNCH ASSEMBLY AC1010: 48" AUTO CUT AC1011: 48" BACK GAUGE PR135: PRESS BRAKE BACK GAUGE PD1000: PUNCH & DIE STARTER SET AC1000: ACCESSORY LED LIGHT AC1017: FABRICATOR'S PROTRACTOR AC1910: FENCE GUIDES, SHORT 12", STANDARD HANDLES AC1911: FENCE GUIDES, LONG 18", STANDARD HANDLES AC1912: FENCE GUIDES, SHORT 12", HANDLES FOR HEAVY DUTY TABLE AC1913: FENCE GUIDES, LONG 18", HANDLES FOR HEAVY DUTY TABLE AC2000: PRODUCTIVITY PACKS
Specifications
| Manufacturer | Edwards Ironworkers |
| Model | IW100 |
| Condition | New |
| Stock Number | IW100-3P230 |
| Rating | 100 Tons |
| Throat Depth (in.) | 11 |
| Open Height (in.) | 8-3/4 |
| Shut Height (in.) | 6-15/16 |
| Stroke (in.) | 1-13/16 |
| Work Height (in.) | 37 |
| Max. Round Capacity (in.) | 1-1/4 |
| Max. Square Capacity (in.) | 1-1/4 |
| Optional | 7.5 HP 3~ 460V, 1765 RPM 11 A7.5 HP 3~ 575V, 1770 RPM 8 A5 HP 1~ 208 V or 230V, 1725 RPM 23 A*7.5 HP 1~ 230V, 1765 RPM 36 A |
| Hydraulic Pump Size (GPM) | 10-1/2, 2 stage |
| Valve Pressure (PSI) | 3,500 |
| Reservoir (gallons) | 17 |
| Cylinder (in.) | 3-1/2 ram |
| Width (in.) | 56-1/8 |
| Depth (in.) | 45 |
| Weight (lb.) | 4,650 |
