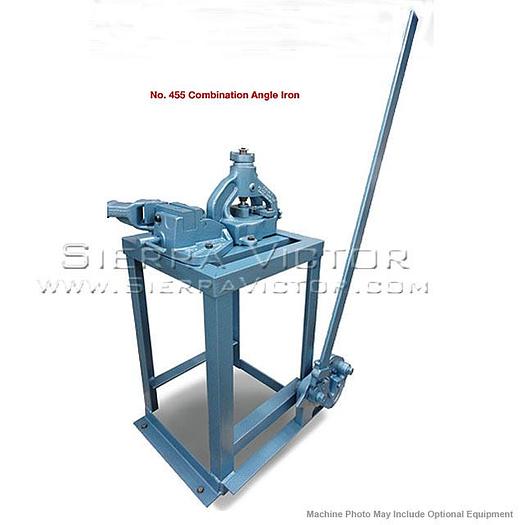

ROPER WHITNEY Combination Angle Iron Bender/Shear/Notcher with Handle and Floor Stand NO.455

ROPER WHITNEY Combination Angle Iron Bender/Shear/Notcher with Handle and Floor Stand NO.455

$2,916

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ROPER WHITNEY Combination Angle Iron Bender/Shear/Notcher with Handle and Floor Stand NO.455 ITEM: 2" x 2" x 1/4" Combination Angle Iron Bender/Shear/Notcher MANUFACTURER: ROPER WHITNEY MODEL: NO. 455 PART# 141034550 The No. 455 is a must whenever angle iron is fabricated. It consists of No. 4 Angle Iron Shear, No. 50 Angle Iron Notcher and No. 51 Angle Iron Bender, all mounted on a sturdy work station. 72" operating bar handle included. This all in one unit ideal for use on a job site, mounted in the back of a truck, or used in a job shop. The No. 50 Angle Iron Notcher is a useful tool for notching or coping angle iron. It can be used in the shop or on the job site, Coping and special degree notching blade and dies are available The NO. 51 angle iron bender will bend all sizes of angle iron within the rated capacity as well as flat bars. It includes a 32" operating bar handle. The No. 4 Angle Iron Shear is offered with three types of shear blades; standard, contour and special. The standard blades are installed at the factory and all No. 4 shears are shipped with these blades. The contour and special blades must be purchased separately and installed by the user. The same base shearing die can be used with all three shear blades. Note: Shearing 2" x 2" x 1/8" angle without distortion requires a special blade with also cuts other sizes as shown for contour blade. Since the extreme capacity of this tool is accomplished by a shearing action, there is a bending out or distortion of one leg of the angle iron when using the standard movable shear blade. To avoid this distortion, a contour moveable shear blade is offered to cut 1/2" x 1/2" 1/8" to and including maximum contour capacity of 2" x 2" 3/16". Can be sold separately or together MADE IN USA STANDARD EQUIPMENT: Handle Floor Stand PART # ITEM 745120053 NO. 50 - 90° Upper blade 350700213 NO. 50 - 90° Lower die PART # ITEM 350004070 NO. 4 - Standard replacement blade 350004025 NO. 4 - Special 2" x 2" x 1/8" replacement blade 250004150K NO. 4 - Base replacement blades ( set )

Specifications

ManufacturerRoper Whitney
ModelNO. 4
ConditionNew
Stock Number141034550
Catalog No.140020040
Max. Capacity2" x 2" x 1/4"
Dimensions13-1/2" x 7" x 10"
Weight51 lbs.
