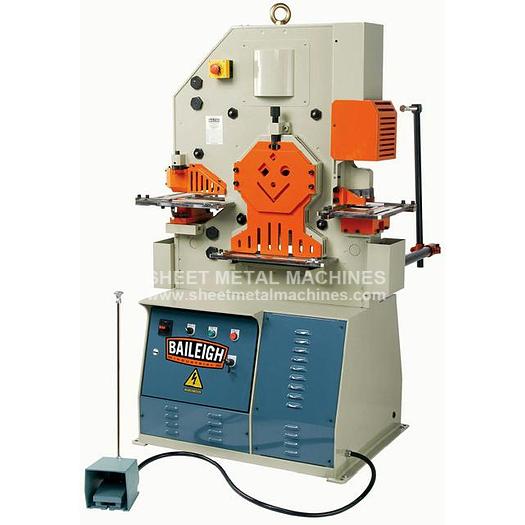

BAILEIGH Hydraulic Ironworker SW-623

BAILEIGH Hydraulic Ironworker SW-623

$17,961

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer BAILEIGH Hydraulic Ironworker SW-623 This rugged hydraulic ironworker machine amps up the efficient, feature-loaded design of our SW-50 models with additional capacity for tougher applications. If your shop takes on punching, shearing, and notching jobs on a regular basis, let the SW-623 prove how hardworking a hydraulic ironworker can be over decades of use.

  • Runs on 220-volt 3-phase power.
  • Delivers a robust 62 tons of pressure at all 5 integrated stations: punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching.
  • Pure vertical hydraulic movement at each station produces exceptionally clean cuts, notches, and holes in seconds.
  • You can set the backgauge and material stops to save time and ensure repeatability for production runs.
  • Large 2-piece worktables, equipped with handy meter guides, pull out from the machine to fit oversized or awkwardly shaped materials.
  • Downward and upward adjustable stroke controls minimize unnecessary machine motion, decreasing energy usage as well as wear and tear.
  • Knurled handle located at the top of the notching station lets you adjust the material hold-down to deliver crisp shears and punched holes.
  • Our patented swing-away material stripper lets you change tooling in seconds.
  • Specify tooling alignment with a turn of the jog dial for increased safety.
  • Comes standard with 7 punch and die sets, ready to handle a variety of materials and profiles.
  • Accepts durable tooling options from Baileigh, such as press brake or pipe notching attachments, that make the SW-623’s even more useful.
  • Rigid steel plate construction strengthens the machine and maintains accuracy.
  • Covered by a 1-year parts warranty and lifetime technical support by phone from Baileigh’s seasoned team of customer service representatives.


Why choose the SW-623 over similar machines?

  • Vertical hydraulic movement minimizes deformation and produces more exact cuts than competing ironworkers that use pivot mechanisms.
  • The ironworker and its tooling will both last longer because the vertical direction of the hydraulic pressure reduces stress on the machine.
  • Exceptionally fast punch tooling change system takes time off of production runs.
  • We automatically include extras that other companies consider upgrades, such as a die sets and wastebaskets for scrap.
  • This unit’s small footprint will save space at your shop.
  • You can count on unlimited remote assistance and troubleshooting. Give us a call anytime. We can also offer advice on getting the most out of the SW-623 on projects.


ITEM: 62 Ton 5 Station Hydraulic Ironworkers MANUFACTURER: BAILEIGH MODEL: SW-623

Specifications

ManufacturerBaileigh Industrial
ModelSW-623
ConditionNew
Stock NumberSW-623
Country of ManufactureTaiwan
Round Bar Shear1.5"
Rectangle Notcher W x D x T2" x 3.5" x .312"
Single Vee Press Brake L x T6.312" x .312"*
Punch Capacity1.125" x .625"
Punching Pressure62 Tons
Pipe Notching2.5"*
Multi Vee Press Brake L x T9.875" x .156"*
Notching Working Height40"
Throat Depth8"
Vee Notcher Side x Side x T3.5" x 3.5" x .312"*
Working Height39.5"
Square Bar Shear1.5" x 1.5"
Channel Shear4"*
Bar Shearing Working Height44"
Angle Shearing Working Height40"
Angle Shearing at 90°4" x 4" x .375"
Angle Bending2.5" x .312"*
Angle Flange Trim4"
Blade Length14.125"
I Beam Shear4"*
Max. Stroke Length2"
Diameter x Thickness1.625" x .437"
Cycles / Min.28 @ 15 mm
Flat Bar Shearing13.50" x .625"
Flat Shearing Working Height31.5"
Power5 HP - 220V 3-Phase
Shipping Dimensions45" x 30" x 68"
Baileigh Sales TaxDue to Wayfair ruling from the Supreme Court: Effective 12/1/2018 ALL Baileigh Industrial Distributors are required to collect sales tax on ALL Baileigh Products in ALL STATES regardless of purchase point EXCEPT in the following States: AK AZ DE FL KS MO MT NH NY OR VT If you have a manufacturing tax exemption, please submit with your order.
Shipping Weight2,310 lbs.
