GMC CNC Power Folder EFM-1014CNC

GMC CNC Power Folder EFM-1014CNC

$65,850 FREE SHIPPING!

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

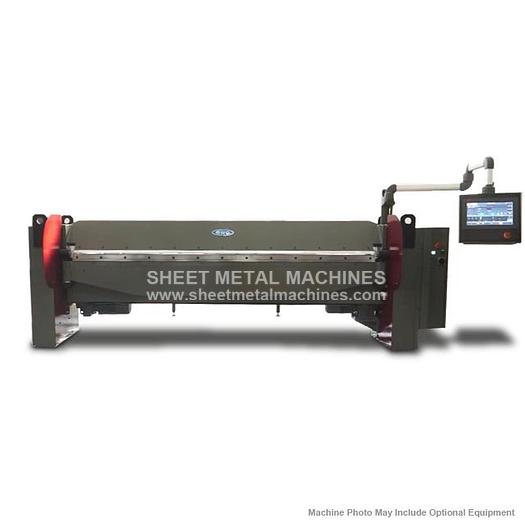

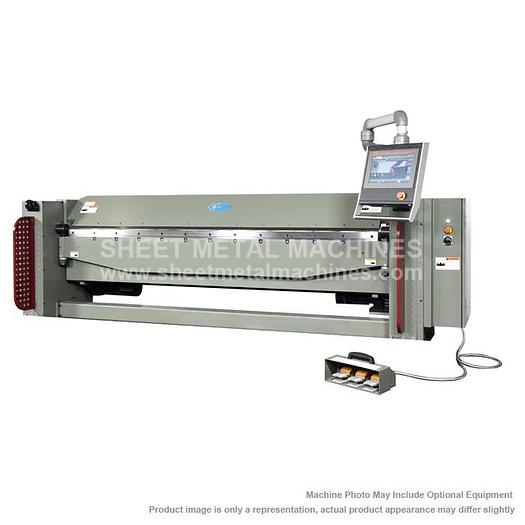

GMC 10' x 14 Ga. CNC Power Folder EFM-1014CNC

  • ISO 9001 certified
  • Designed in US and Taiwan quality Machine
  • Meet OSHA and CE safety standard
  • ESA CNC control, made in Italy
  • Max. 99 bends per program
  • Up to 2000 Programs Storage
  • Profiles library with graphics
  • Programmable Radius Bend
  • Programmable Angle/ Angle Correct
  • 48” CNC back gauge with table and fingers
  • Hardened nose bar and table, up to 48HRC
  • Comes with one 1” Insert Bar and one ½” Insert Bar
  • Yaskawa Servo motors and Drives
  • Schneider electrical components
  • All steel construction for maximum rigidity
  • Hydraulic logic system centrally located and quiet
  • Meet OSHA standard, to start the program, need to press foot pedal twice
  • Safety type foot pedal with handle and E-stop switch
  • Safety 24V low voltage & overload protection
  • Need to step up transformer if the power supply is 208V, 3 phase


OPTIONAL ITEMS:

  • 1/2” thick insert bar for ½” min. reverse bend, capacity mild steel 28-22G…$1,950.00
  • 3/16” thick insert bar for ¼” min. reverse bend, capacity mild steel 24Ga…$1,950.00
  • One day on-site training ……………………………………………………….$3,950.00
  • Step up transformer for 208V to 220V ………………………………………. $950.00
  • American Rotary Phase Converter for 220V,1phase to 220V, 3 phase ….$2,750.00
  • CNC Training: $595 includes 2 hours of FaceTime or Google Duo Live Video Training And (1) 30 minute follow after training of needed for additional support
  • We will provide follow up Support Video


Design and Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerGMC Machine Tools
ModelEFM-1014CNC
ConditionNew
Stock NumberEFM-1014CNC
Capacity: Mild Steel14 Ga
Capacity: Stainless Steel18 Ga
Close Hemming capacity22 ga
Open Hemming capacity22 ga
Bending length capacity10'1"
Bend Angle Degree, programmable0- 135 degree
Hemming capacity, Mild steel20 ga.
Hemming capacity, Stainless steel24 ga.
Large Beam Opening/clamping opening4-7/8"
Min. Reverse Bend1/2"
Max. Table Back Gauge Distance48-3/8"
Min. Table Back Gauge Distance1/2"
Back Gauge Repeatability0.0039"
Back Gauge Table height35-3/4"
Main motor4HP, 220V, 3-phase
Servo motor for back gauge2 HP, 220V, 3-phase
Clamping motor1-1/2 HP, 220V, 3-phase
Machine size, L x W x H158" x 79" x 63"
Machine weight8,850 lbs.
