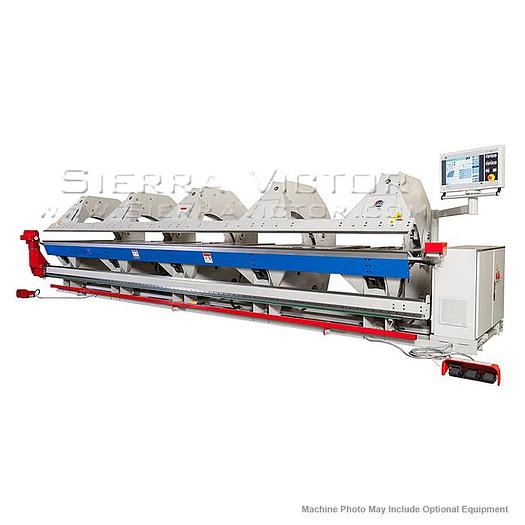

ROPER WHITNEY AUTOMAX Long Folding Machine

ROPER WHITNEY AUTOMAX Long Folding Machine

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ROPER WHITNEY AUTOMAX Long Folding Machine AutoMax is the standard model in Roper Whitney’s new American-made long folding line. It is ideal for builders, metal part fabricators, roofing companies and others who create complex profiles and need the flexibility and throughput of a long folding system. With the creation of the Automax folding machine, we have set ourselves apart from the competition. This new model has the most free space in the industry allowing the operator to create shapes that cannot be created on competitor’s machines. The extra free space also reduces part handling which is important on long pieces that are difficult to manipulate. AutoMax is the standard model in Roper Whitneys new American-made long folding line. This sheet metal brake is ideal for builders, metal part fabricators, roofing companies and others who create complex profiles and need the flexibility and throughput of a long folding system. The AutoMax combines automated bending of angles up to 147 degrees, material clamping,and material support into a single CNC controlled system employing wing bending techniques. The AutoMax is a plate and weldment designed machine, delivering superior performance and features. The curved design of the C frame gives this machine a rigid foundation while reducing stress points seen in competitive makes. The linkages of the AutoMax are located within the C frame structure. This design improves machine rigidity and bending performance. The hydraulic unit is controlled by a high speed frequency inverter. The inverter, controlled by the Synergy Control, provides quick, smooth movement of the machine. The inverter reduces power to the pump when not in use, saving energy costs. The hydraulic manifold is located at the center of the machine, which allows for even flow of hydraulic pressures, giving the machine even operation. The bending leaf is powered by two cylinders and guided by 5 linkage sets.The electrical cabinet is located at the right side of the machine in a quick lock enclosure along with the Synergy control. The curved C Frame design provides superior clamping pressures while eliminating stress points seen on competitive machines. This design allows for much more free space for complicated bends / profiles. The maximum opening height of the AM2116 is 7.87. ITEM: 21.3' x 16 ga. Long Folding Machine MANUFACTURER: ROPER WHITNEY MODEL: AUTOMAX CALL FOR PRICE: OPTIONAL SLITTER : The Slitter for the AutoMax is mounted to the lower frame of the machine, freeing the folding beam of any obstructions. The slitter is hydraulic powered via frequency invertor. The unit is guided by two precision ground linear rails. The rigid mount of the AutoMax Slitting unit allows quick and accurate cutting of material at capacity.

Specifications

ManufacturerRoper Whitney
ModelAUTOMAX
ConditionNew
Stock NumberAUTOMAX
Bending Length21.3’ / 6.5 mm
Maximum Bending Capacity (Mild Steel)16 ga / 1,6 mm
Maximum Bending Capacity (Stainless Steel)20 ga / 1,6 mm
Maximum Bending Capacity (Aluminum)0.08 ga / 2,0 mm
Maximum Slitting Capacity (Mild Steel)16 ga / 1,6 mm
Back Gauge Travel49" / 1250 mm
Number of Back Gauge Fingers (Standard)5
Minimum Back Gauge Distance (Pushing)0.394" / 10 mm
Number of C Frames5
Number of Bending Cylinders2
Width of Folding Beam0.550" / 14 mm
Folding Beam Maximum Bend147°
Standard Clamping Rail35°
Slitter Offset from Bending Point2.5" / 70 mm
Hydraulic Motor7.5 Hp
