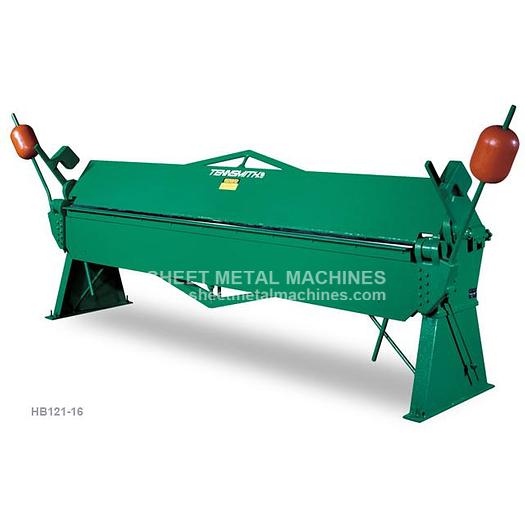

Please note: many products ship straight from manufacturer TENNSMITH Heavy Duty Hand Brake HB121-16 ITEM: 121" x 16 ga Heavy Duty Hand Brake MANUFACTURER: TENNSMITH MODEL: HB121-16

MADE IN USA TENNSMITH'S Heavy-duty hand brakes are designed and built for long service and accurate bending. Welded steel plate construction and heavy truss rods and braces provide strength and durability. With much more substantial steel side plates than other domestically made units, these brakes have teh rigidity required for upper beam adjustment without the use of wrenches. Equipped with thrust bearings, the upper leaf adjustment screws permit quick, accurate alignment for different material thickness or radii. Other adjustment features include: Leveling screws and lock nuts on the pedestals Jack screws and tensioner bolts on the apron Truss rods on the apron, base and upper beam Fully adjustable counter balances to facilitate the bending process Replaceable nose bar and apron inserts Removable apron angle and insert permit 1/4-inch reverse bends in lighter material Bored in line to ensure perfect alignment, the pivot points are fitted with oil impregnated bearings. The hinge pins are high-tensile, alloy steel. Ductile steel clamp handles, heavy yokes, grease fittings and an apron stop rod complement the many other fine features of these heavy-duty brakes

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 3 YEAR – Limited


Stock Number85140
Capacity - Mild Steel16 ga
Bending Length121"
Maximum Lift of Beam2-1/4"
Front to Rear Beam Adjustment1/2"
Minimum Reverse Bend1/4"
Minimum Flange in Capacity Material1"
Dimensions (LxWxH) Counterweights in Place161" x 53" x 59-1/2"
Shipping Weight: (lbs.)2,875 lbs.
