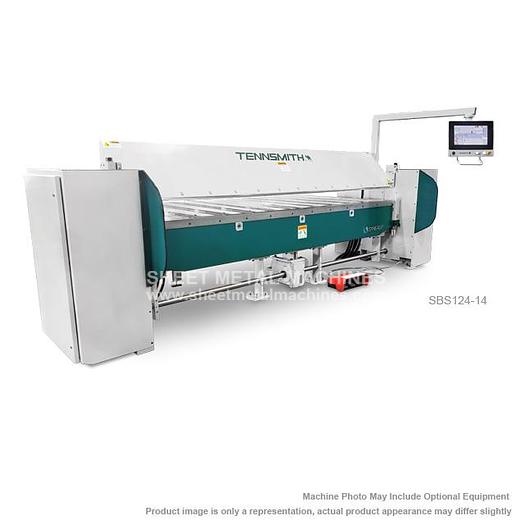

TENNSMITH Automatic Folder SBS12614

TENNSMITH Automatic Folder SBS12614
Contact us for price
Description
Please note: many products ship straight from manufacturer
The Tennsmith SBS12614 sheet metal folder can handle up to 14 ga for mild steel and 16 ga for stainless steel with a bending length of 126 inches. The SBS Series sheet metal folders incorporate a twin motor drive system for the folding beam. This allows the system to be fast and extremely accurate. Bending speeds up to 90 degrees per second are easily achieved. Another advantage to this system is maintenance. Unlike with a chain drive system, there are no adjustments needed. For maximum hemming capacity, another strong feature of the TENNSMITH SBS Series, Metal Folding Machine, is the center drive of the clamping system. The placement of the motor in the center of the machine maximizes power while reducing torque loss through the drive shaft. The benefit is a hemming capacity of 20 gauge for the SBS12614.
ITEM: 10.5' (126") x 14 ga Automatic Folder
MANUFACTURER: TENNSMITH
MODEL: SBS SERIES
PART# SBS12614
Specifications
Manufacturer | Tennsmith |
Model | SBS12614 |
Condition | New |
Stock Number | SBS12614 |
Bending Capacity - Mild Steel | 14 GA |
Bending Capacity - Stainless Steel | 16 GA |
Bending Length | 126" |
Bending Bars | 1" / 25mm and 7/16" / 11mm |
Back gauge depth (Standard) | 41" / 1,014mm |
Back gauge depth (Optional) | 61" / 1,550mm |
Clamping Beam Opening Height | 7" / 178mm |
Clamping Beam Tooling | 30° |
Folding Beam Adjustment | 1" / 25mm |
Crowning of the folding beam | 3-point 0" - 0.030" Adjustment |
Working Height | 34" / 864mm |
Machine Length | 180" / 4,572mm |
Machine Width | 96" |
Machine Height | 72" / 1,829mm |
Machine Weight | 9,020 labs. |
Shipping Weight | 9,885 labs. |
Back gauge motor | 3/4 HP |
Clamping beam motor | 2 HP |
Bending beam motor | 2+2 HP |
Clamping Beam Speed | 2.5" per second |
Folding Beam Speed | 90° per second |
Back gauge speed (0.375" to 41") | 5 seconds |
