TENNSMITH Bench-Mounted Straight Hand Brake HBS48-16

TENNSMITH Bench-Mounted Straight Hand Brake HBS48-16


orCall 386-304-3720

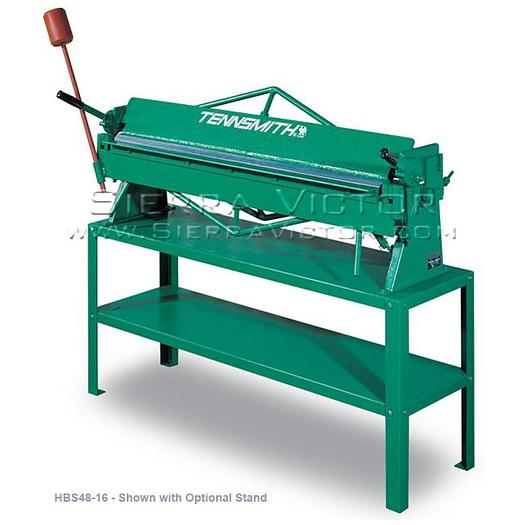

Please note: many products ship straight from manufacturer TENNSMITH 48-1/4" x 16 ga Bench-Mounted Straight Hand Brake HBS48-16 MADE IN USA. TENNSMITH'S bench-mounted hand brakes are rugged, dependable USA-made tools that wont break your budget. Model HBU48-16 is a heavy-duty bench brake suitable for box and pan or straight bending in up to 16-gauge mild steel. The brake features a removable apron angle and apron insert permitting 1/4 inch reverse bends in lighter materials. The upper leaf and nose bar has a wide range of adjustment for radius bending. Standard equipment includes an apron stop rod for repeat bends, extension handles and a counterweight. Model HBS48-16 is identical in features and capacity to the HBU48-16 but is intended solely for straight bending. Like our larger hand brakes, the HBS48-16 features a replaceable nose bar. TENNSMITH'S bench-mounted hand brakes provide an economical means of performing a wide range of sheet metal bending and forming operations. These brakes are all-steel welded construction, readily adjustable and utilize bronze bearings at pivot points. OPTIONAL ITEMS: 85060: Floor Stand for 4 Foot Bench Brakes $310.00


Stock Number85020
Capacity - Mild Steel16 ga
Bending Length48-1/4"
Maximum Depth of Box
Maximum Lift of Beam1-3/4"
Front to Rear Beam Adjustment5/8"
Minimum Reverse Bend1/4"
Minimum Flange in Capacity Material1"
Finger Widths
Shipping Weight: (lbs.)460 lbs.
