TIN KNOCKER Manual Slip Roll TK 1648

TIN KNOCKER Manual Slip Roll TK 1648
$4,860 Free Shipping to Commercial Address - See Details
Description

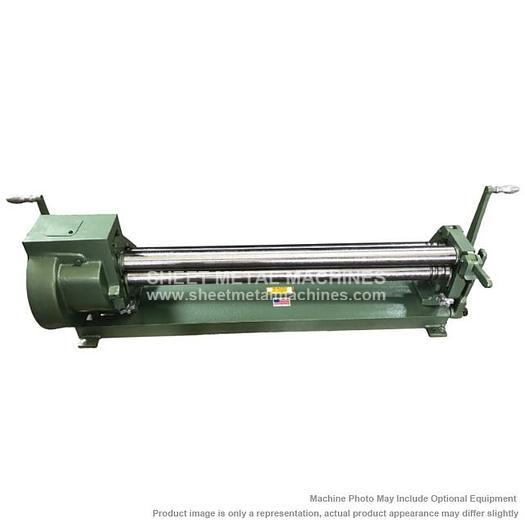

Please note: many products ship straight from manufacturer TIN KNOCKER 48" x 16 ga. Manual Slip Roll TK 1648
- Built to last, this stout set of slip rolls includes two crank handles for heavy capacity forming. All rolls are gear driven. A starting groove in the rear roll, as well as wiring grooves are standard on this machine. The lift handle makes for fast, easy extraction of formed material
- Stand Included
____________
- Free Shipping to Commercial Address with Forklift / Loading Dock or Terminal Pickup
- Residential / Liftgate Charge: $150
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
Manufacturer | Tin Knocker |
Model | TK 1648 |
Condition | New |
Stock Number | TK1648 |
Capacity: | 16-gauge mild steel |
Max. Forming Length: | 49 inches |
Bend Length: | 48" (122cm) |
Roll Diameter: | 3" |
Gear Ratio: | 4:1 |
Shipping Dimensions: | 77" x 30" x 22" |
Shipping Weight: | 1,100 lbs. |
Max Beam Lift: | 1.25" (31.75mm) |
Max. Box Depth: | 4" (101mm) |
Min. Reverse Bend: | .25 (6.35mm) |
Min. Flange: | 1" (25.4mm) |
Finger Width: | 2, 3, 4" |
Dimensions: L x W x H | 64 " x 28" x 32" |
Approx. Weight: | 493 lbs. |
Stand | 270 lbs |
