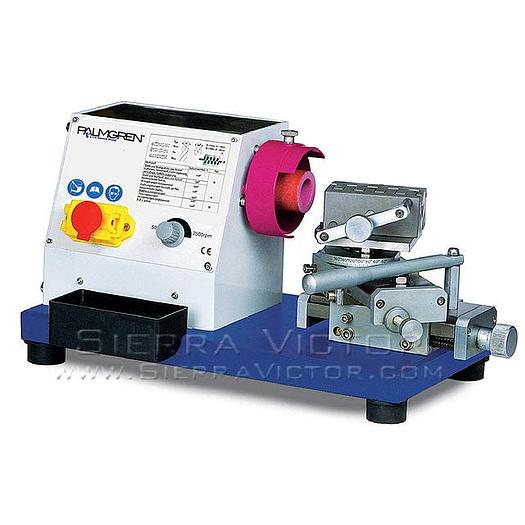

PALMGREN Drill Sharpener 9682910

PALMGREN Drill Sharpener 9682910


orCall 386-304-3720


Please note: many products ship straight from manufacturer PALMGREN Drill Sharpener 9682910 ITEM: Multi-Angle Drill Sharpener Tool Grinder MANUFACTURER: PALMGREN PART# 9682910 For drill sharpening the Palmgren Drill Sharpener is designed for precision, efficient easy operation and has the flexibility required to sharpen the largest range of dull or broken drill bits including split points and masonry bits from 1/8" to 3/4". Easy to use the drill bits are securely held in a prismatic vise for precise centering of the bit to the grinding wheel and very exact repeat accuracy. This design lets you grind a wide range of drill point variations – you can even customize point angles and clearances to achieve the most efficient feed rates to match your specific applications. Sharpens high speed steel, carbide, cobalt, TIN-coated and masonry bits with a drill bit capacity of 7/64" to 13/16", with an angle range of 90 to 150 degrees and relief angles of 0 to 20 degrees and drill point concentricity of .001" lip to lip. The unit is constructed of cast iron and steel providing a rugged vibration free foundation and comes standard with cup grinding wheel, built in diamond wheel dresser, powerful 800W motor, broad infinitely variable speed range, magnetic switch with lockable emergency stop button and quench pot. This unit is used to sharpen dull and broken drill bits extending their useful life and improving their performance Safety switch: Easy-to-operate Protective with low-voltage release. Emergency-stop button. Rubber cap for protection against dust and water Cup wheel: Self-trimming. Runs dry. Prismatic vise: Solid. For exact centering and safe fixturing Wide grinding range: Twist drills from 1-1/8" to 3/4"


Stock Number9682910
Amps AC11
Speed RPM1680 - 9120
Cup Wheel Outside Ø40 mm / 1.575"
Cup Wheel Iutside Ø26 mm / 1.024"
Cup Wheel Thread ØM 10 / .3425"
Depth of the Cup Wheel22 mm / .866"
Dimensions8.858" L x 19.291" W x 9.449" H
