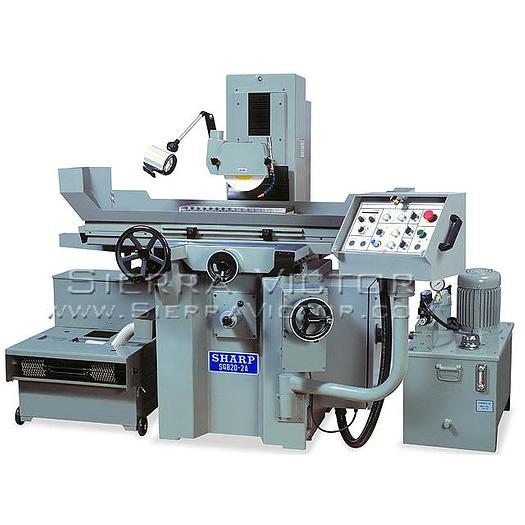

SHARP Automatic Surface Grinder with NC SG-820-3A
SHARP Automatic Surface Grinder with NC SG-820-3A
Contact us for price
Description
Please note: many products ship straight from manufacturer ITEM: 8" x 20" Automatic Surface Grinder with NC MAKE: SHARP MODEL: SG-820-3A
Specifications
| Manufacturer | Sharp |
| Model | SG-820-3A |
| Condition | New |
| Stock Number | SG-820-3A |
| Maximum grinding width | 8.7" |
| Max distance: table to spindle center | 15.7" |
| Maximum longitudinal travel | 23.6" |
| Maximum cross travel | 9.25" |
| Hand feed | 0.2 in/rev |
| Continuous transverse feed | 47.2 in/min |
| Graduation of hand wheel | 0.0001” |
| Total stock removal | 0.0000 – 39.3” |
| Fine feed stock removal | 0.00004”-0.0016” |
| Rapid feed | 1.1 – 11.8 ins/min |
| Spark out | 0-9 passes |
| Spindle speed | 3,420 RPM |
| Grinding wheel outside diameter | 8" |
| Grinding wheel bore | 1.25" |
| Grinding wheel width | 0.5" |
| Floor space (W x H x L) | 83" x 59" x 78" |
| Net weight (approximately) | 2,600 lbs. |
