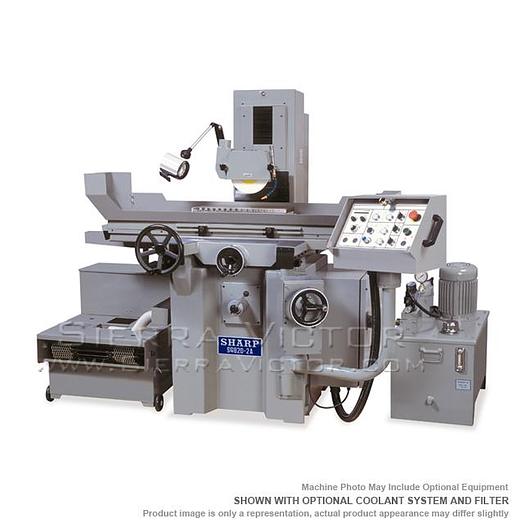

SHARP Automatic Surface Grinder SG-820-2A

SHARP Automatic Surface Grinder SG-820-2A
$23,670
Description
Please note: many products ship straight from manufacturer SHARP 8" x 20" Automatic Surface Grinder SG-820-2A 8” x 20” Table, 9.25” x 23.6” Travel Automatic Crossfeed Accurate Slot-Grinding Capability Hydraulic System for Table Travel 2 HP Spindle Motor – 3,420 rpm Double “V” Way Cross Travel One “V” One Flat Way Longitudinal Travel Hand Scraped and Turcit B Coated Way STANDARD EQUIPMENT: Grinding Wheel (8” x 0.75” x 1.25”) KANETSU Electro-Magnetic Chuck with Control Auto Lube System Coolant System with Paper Filter (25 Gal.) & Splash Guard Wheel Adapter/Flange Work Light Wheel Balancing Arbor Diamond Dresser Wired 220V or 440V. Please specify Tool Kit includes: Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of 6 Allen wrenches, Phillip screw driver, oil can, Grease Gun, Rear way cover bracket, Pin for indicator, Can of paint ITEM: 8" x 20" Automatic Surface Grinder MANUFACTURER: SHARP MODEL: SG-820-2A PART # ITEM SG-8-1 8”x1.25”x0.75” Wheel & Vari-Speed Wheel Head Control (220V) SG-8-2 8”x1.25”x0.75” Wheel & Vari-Speed Wheel Head Control (440V) KESL-2050/KT-115 8” x 20” Kanetsu Electro-Magnetic Chuck (Fine Pole) with Control LBP-820 8” x 20” Walker Electro-Magnetic Chuck (Fine Pole) with Control (ALL MAGNETIC CHUCKS INCLUDE FREE INSTALLATION) SG-08 Extra Wheel Adapter (Flange) SG-05 “Overhead” Manual Parallel Dresser BS-SG/SP Balance Stand DC Dust Collector CS&PF&MS Coolant System w/Magnetic Separator & Paper Filter (25 Gal) 220V/440V MCA40/PF Coolant System w/Magnetic Separator & Paper Filter (25 Gal) 380V (for International use) FG-SG820 Fagor 20i D.R.O. FG-40i-SG820 Fagor 40i D.R.O. AR-SG820 Acu-Rite 200S D.R.O. NW-SG820 Newall DP700 D.R.O. — Factory Installation – D.R.O. ***All Magnetic Chucks Includes Free Installation*** *** (440V machines needs transformer for programmable micro control downfeed system.)
Specifications
Manufacturer | Sharp |
Model | SG-820-2A |
Condition | New |
Stock Number | SG-820-2A |
Maximum grinding width | 8.7" |
Max distance: table to spindle center | 15.7" |
Maximum longitudinal travel | 23.6" |
Maximum cross travel | 9.25" |
Hand feed | 2.7 ft./rev |
Continuous transverse feed | 47 in/min |
Hand Feed per Revolution | 0.2" |
Graduation of Hand Wheel | 0.0005” |
Graduation of Hand Wheel | 0.0001” |
Rapid feed | 1.1 –11.8 ipm |
Spindle speed | 3,420 RPM |
Grinding wheel outside diameter | 8" |
Grinding wheel bore | 1.25" |
Grinding wheel width | 0.5" |
Floor space (W x H x L) | 83" x 59" x 78" |
Net weight (approximately) | 2,540 lbs. |
440V | 4 KVA/ 5.5 amps |
