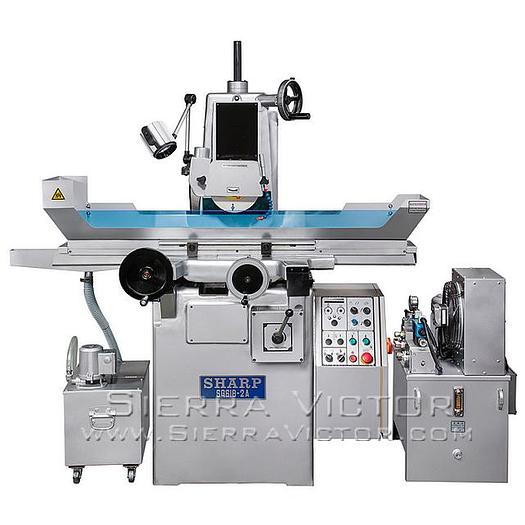

SHARP Automatic Surface Grinder with NC SG-618-3A

SHARP Automatic Surface Grinder with NC SG-618-3A

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ITEM: 6" x 18" Automatic Surface Grinder with NC MAKE: SHARP MODEL: SG-618-3A

Specifications

ManufacturerSharp
ModelSG-618-3A
ConditionNew
Stock NumberSG-618-3A
Maximum grinding width5.9"
Max distance: table to spindle center16"
Maximum longitudinal travel21.6"
Maximum cross travel7"
Hand feed per revolution (longitudinal)2.7 ft./rev
Continuous transverse feed47.2 in/min
Hand feed0.2 in/rev
Graduation of hand wheel0.0001”
Total stock removal0.00005 – 9.99995”
Fine feed stock removal0.00005”-0.00495”
Rapid feed1.1 – 9 ins/min
Spark out0-9
Spindle speed3,600 RPM
Grinding wheel outside diameter8"
Grinding wheel bore1.25"
Grinding wheel width0.63"
Floor space (W x H x L)83" x 51" x 71"
Net weight (approximately)2,100 lbs.
