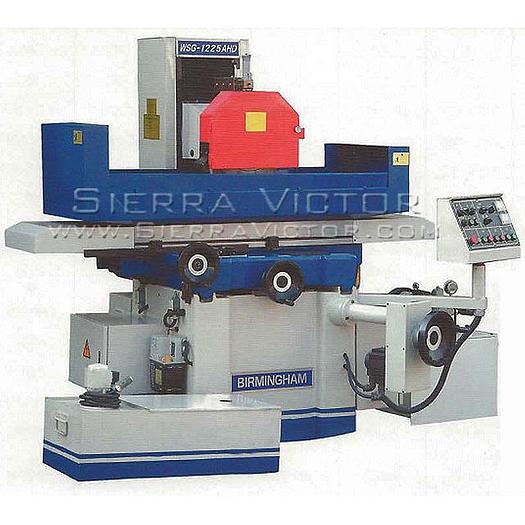

BIRMINGHAM Precision 3-Axis Auto Surface Grinder WSG-1225AHD

BIRMINGHAM Precision 3-Axis Auto Surface Grinder WSG-1225AHD

Contact us for price

orCall 386-304-3720


Please note: many products ship straight from manufacturer BIRMINGHAM 12" x 25" Precision 3-Axis Auto Surface Grinder WSG-1225AHD Precision 3-Axis Auto, Surface Grinder with Chuck, Coolant AHD means: Auto feed on transverse, hydraulic transmission on longitudinal, auto feed on vertical. COLUMN: Enlarged, Double wall, Strong ribbed column, especially suitable for heavy duty grinding CONSTRUCTION: Construction of table, saddle and base is casted with high grade casting iron, strongly ribbed. SPINDLE: Enlarged spindle set is supported by 4 pieces of preloaded precision angular contact ball bearings for heavy duty SLIDEWAYS: Vertical, cross (double vees) and longitudinal (one vee & one flat) slideways are coated with Turcite-B, provides stable movement and durable accuracy AUTOMATIC CONTINUOUS LUBRICATION SYSTEM: All slideways and screws are fully oiled by automatic continuous lubrication system to eliminate wears on slideways & screws. CROSS FEED: Ball screw for cross travel, powered by AC Motor VERTICAL FEED: Powered by servo motor HYDRAULIC TABLE: Table speed ranges 5-25m/min. with rack and pinion table drive for hand operation PROXIMITY SWITCH: Provide built-in-type (hidden) proximity switch, features safe and easy operation TABLE SPEED CONTROL: Presettable hydraulic table speed control allows operator to pre set speed rate, enable to get same speed rate when engaging hydraulic table everytime. HAND WHEELS: Zero-setting slip rings with vernier on vertical hand wheel and vernier on crossfeed hand wheel.

STANDARD EQUIPMENT: Grinding Wheel Grinding Wheel Flange Wheel Balance Stand Wheel Balance Arbor Diamond Wheel Dresser Wheel Flange Extractor Working Light System Lubrication System Coolant System Full Length Splash Guard


Stock NumberWSG-1225AHD
Table Size12" x 25"
Max. longitudinal travel30.12"
Max. Cross Travel13.39"
Max. distance from spindle center to table22.84"
Magnetic chuck size11.81" x 23.62"
Speed of table longitudinal movement (in/min)275" - 905"
Rapid speed (in/min)9.45"
Feed of handwheel (in/div.).0002"
Size (OD X W X ID)13.8" x 1.6" x 5"
Motor of spindle7.5 HP
Max. loading capacity of table (include magnetic chuck)600 lbs.
Height of machine75"
Floor space (L x W)115" x 87"
Gross weight6,400 lbs.
Package dimensions (L x W x H)93" x 88" x 87"
