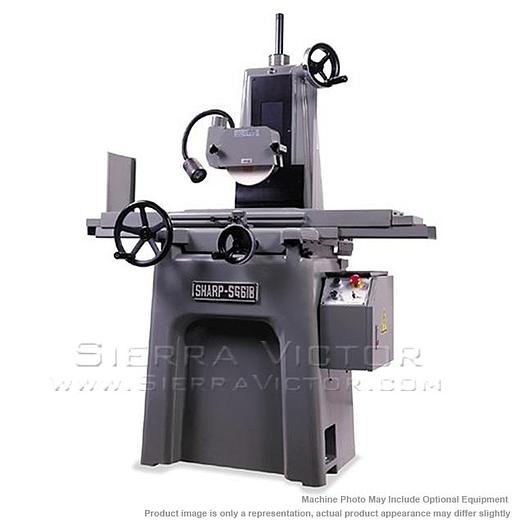

SHARP Manual Surface Grinder SG-618

SHARP Manual Surface Grinder SG-618
Contact us for price
Description
Please note: many products ship straight from manufacturer SHARP 6" x 18" Manual Surface Grinder SG-618 1.5 Motor Two “V” way for extra accuracy in cross travel Both ways are hand-scraped and covered with Turcite B coating Accurate slot grinding achieved using saddle locking system Double-nut backlash eliminator Cross slide and column screws are hardened and ground to a 70 Rockwell C Hardness Wire rope driven table Main spindle run-out within 0.0001” Automatic lubrication system STANDARD EQUIPMENT: Grinding Wheel (8” x 0.63” x 1.25”) Auto Lube System Wheel Adapter/Flange Wheel Balancing Arbor Work Light Diamond Dresser Tool Kit includes: Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of 6 Allen wrenches, Phillip screw driver, oil can, Grease Gun, Rear way cover bracket, Pin for indicator, Can of paint Wired 220v or 440v. Please specify ITEM: 6" x 18" Manual Surface Grinder MANUFACTURER: SHARP MODEL: SG-618 SEE ATTACHMENTS TAB FOR PRICES PART # ITEM KMT-1545B 6x18 Kanetsu Permanent Magnetic Chuck KRTW-1545 6x18 Kanetsu Permanent Magnetic Chuck (Fine Pole) KET-1545 6x18 Kanetsu Electro-Magnetic Chuck w/Control KETW-1545 A 6x18 Kanetsu Electro-Magnetic Chuck w/Control (Fine Pole) LBP-618 6x18 Walker Electro-Magnetic Chuck (Fine Pole) w/ SMART-1B Control (ALL MAGNETIC CHUCKS INCLUDE FREE INSTALLATION) SG-05 Parallel Dresser BS-SG/SP Balance Stand SG-08 Extra Wheel Adapter (Flange) CS-A Coolant System (12 Gal.) w/Splash Guard SG-004 Splash Guard DC Dust Collector CS&PF&MS Coolant System w/Magnetic Separator & Paper Filter (25 GAL), 220V/440V MCA40/PF Coolant System w/Magnetic Separator & Paper Filter (25 GAL), 380V (for International use) — CE mark FG-SG618 Fagor 20i D.R.O. FG-40i-SG618 Fagor 40i D.R.O. AR-SG618 Acu-Rite 200S D.R.O. NW-SG618 Newall DP700 D.R.O. — FACTORY INSTALLATION
Specifications
Manufacturer | Sharp |
Model | SG-618 |
Condition | New |
Stock Number | SG-618 |
Maximum grinding width | 6.3" |
Max distance: table to spindle center | 16" |
Maximum longitudinal travel | 18.9" |
Maximum cross travel | 7" |
Hand feed per revolution (cross) | 0.2" |
Graduation of hand wheel | 0.0001" |
Hand feed per revolution (vertical) | 0.05" |
Spindle speed | 3,600 RPM |
Grinding wheel outside diameter | 8" |
Grinding wheel bore | 1.25" |
Grinding wheel width | 0.63" |
Net weight (approximately) | 1,510 lbs. |
