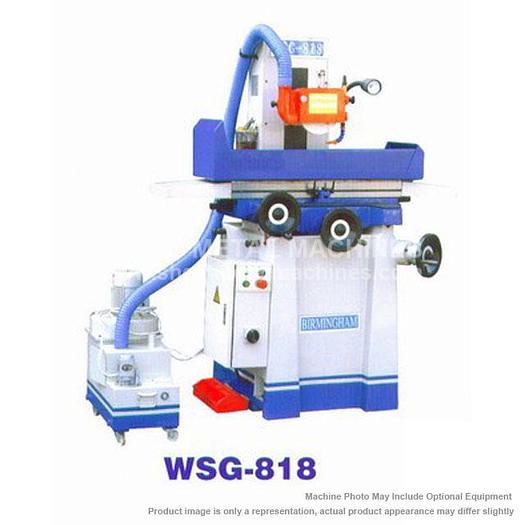

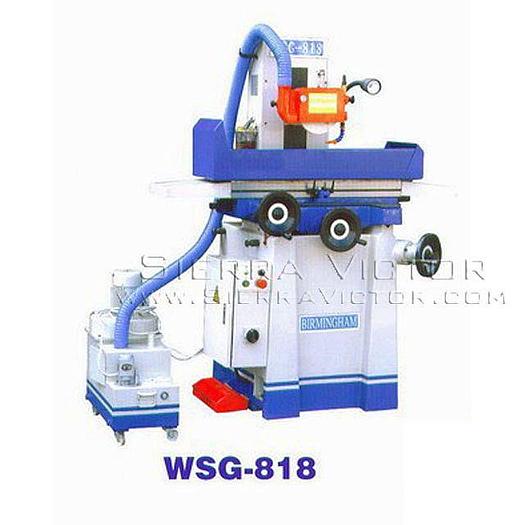

BIRMINGHAM Manual Surface Grinder WSG-818
$9,199 Limited Time Special - Only 1 In Stock! - Prices Valid on In Stock Machines Only
Description
Please note: many products ship straight from manufacturer BIRMINGHAM 8" x 18" Manual Surface Grinder WSG-818
- 2 HP wheel spindle motor
- Fine graduation on travels
- High precision cartridge wheel spindle
- High precision and smooth roller way table
- Auto lubrication on leadscrews and ways
- Fine grain high tensile casting construction
STANDARD EQUIPMENT:
- Grinding wheel
- Grinding wheel flange
- Wheel balance arbor
- Diamond wheel dresser
- Working light system
- Tool box
- Hoisting set
- Leveling Pads
- Coolant/Dust system
- Standard permanent magnet chuck
Specifications and design are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
Manufacturer | Birmingham |
Model | WSG-818 |
Condition | New |
Stock Number | WSG-818 |
Table size | 8" x 18" |
Max. Length to be ground | 19-3/4" |
Max. width to be ground | 8-1/4" |
Max. Height to be ground | 19-3/4" |
Max. distance from spindle center to table | 15-3/4" |
Max. Longitudinal travel | 21-5/8" |
Max. cross travel | 9" |
Longitudinal travel per revolution | 3-15/16" |
Cross Travel per revolution | 0.2" |
Cross travel per graduation | 0.0008" |
Vertical travel per revolution | 0.05" |
Vertical travel per graduation | 0.00025" |
Peripheral speed of wheel | 110 ft/s |
Spindle speed | 3,600 RPM |
Grinding Wheel Size | 8" x 1/2" x 1-1/4" |
Spindle Motor | 2 HP |
Dust Collector Motor | 1/2 HP |
Coolant Pump | 0.05 HP |
Lubrication Pump | 0.02 HP |
Net Weight | 2,350 lbs. |
Overall Dimensions (L x W x H) | 59" x 47" x 72" |
