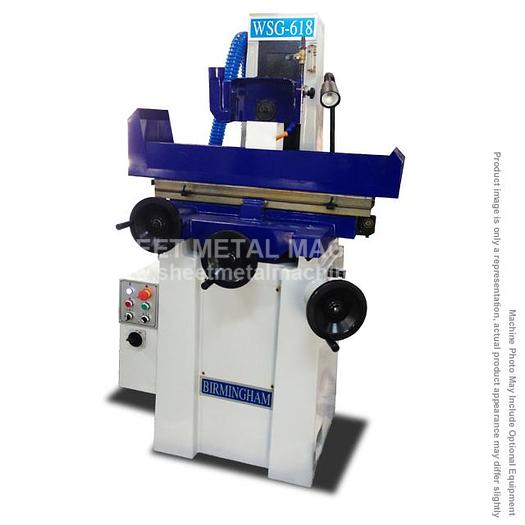

BIRMINGHAM Manual Surface Grinder WSG-618
BIRMINGHAM Manual Surface Grinder WSG-618
Contact us for price
Description
Please note: many products ship straight from manufacturer BIRMINGHAM 6" x 18" Manual Surface Grinder WSG-618
- 2 HP wheel spindle motor
- Fine graduation on travels
- High precision cartridge wheel spindle
- High precision and smooth roller way table
- Auto lubrication on leadscrews and ways
- Fine grain high tensile casting construction
STANDARD EQUIPMENT:
- Grinding wheel
- Grinding wheel flange
- Wheel balance arbor
- Diamond wheel dresser
- Working light system
- Tool box
- Hoisting set
- Leveling Pads
- Coolant/Dust system
- Standard permanent magnet chuck
Specifications and design are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
| Manufacturer | Birmingham |
| Model | WSG-618 |
| Condition | New |
| Stock Number | WSG-618 |
| Table size | 6" x 18" |
| Max. Length to be ground | 18.5" |
| Max. width to be ground | 6.5" |
| Max. Height to be ground | 14" |
| Max. distance from spindle center to table | 15-3/4" |
| Max. Longitudinal travel | 19" |
| Max. cross travel | 7" |
| Longitudinal travel per revolution | 4-1/8" |
| Cross Travel per revolution | 0.2" |
| Cross travel per graduation | 0.0008" |
| Vertical travel per revolution | 0.05" |
| Vertical travel per graduation | 0.00025" |
| Peripheral speed of wheel | 110 ft/s |
| Spindle speed | 3,600 RPM |
| Grinding Wheel Size | 8" x 1/2" x 1-1/4" |
| Spindle Motor | 2 HP |
| Dust Collector Motor | 1/2 HP |
| Coolant Pump | 0.05 HP |
| Lubrication Pump | 0.02 HP |
| Net Weight | 1,600 lbs. |
| Overall Dimensions (L x W x H) | 55" x 39" x 71" |
