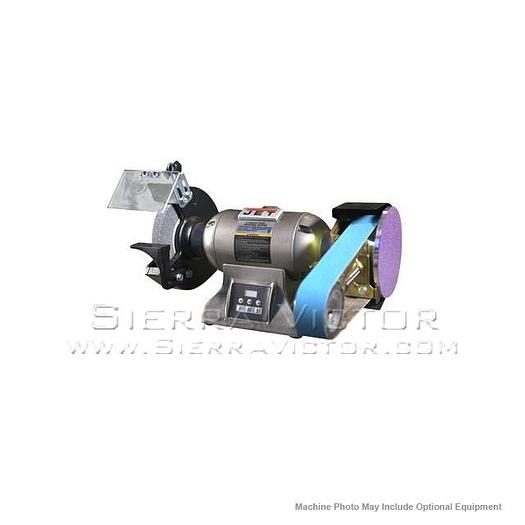

JET IBGM-8 Industrial Grinder with Multitool Attachment 577208

JET IBGM-8 Industrial Grinder with Multitool Attachment 577208


orCall 386-304-3720


Please note: many products ship straight from manufacturer JET IBGM-8 Industrial Grinder with Multitool Attachment 577208 ITEM: 8" Industrial Bench Grinder MANUFACTURER: JET MODEL: IBGM-8 PART# 577208 The Multitool Attachment is the perfect complement to the JET 8-inch Industrial Bench Grinder. Maximizing productivity, the multitool attachment includes a 7-inch disc wheel, flat belt, free strap, and rubber contact wheel and can be operated in either the horizontal or vertical position. Cast Iron Guard house the 36 Grit Wheel Adjustable Cast Iron Tool Rest Massive Cast Iron Body Totally Enclosed Pre-Lubricated Ball Bearings Heavy Duty On/Off Toggle Switch with Safety Key prevents accidental start-up Cast iron wheel guarding with Safety shield on the left and sheet metal guard on the belt Rubber Mounts Prevent Movement Top platen on Belt can be used for straightening or longer edges Four grinding surface on the Multi-Tool and the front contact wheel has a serrated surface for deburring as well as grinding along with a grinding wheel for sharpening and grinding With a quick change of the belt the Operator can go from grinding to polishing in seconds The Multitool grinder can be changed to the vertical position for added versatility STANDARD EQUIPMENT: Large Eye Shield with Quick Adjustments Adjustable Tool Rest Fine Vertified Grinding Wheel Single Dust Chute Hose Wheel Dresser


Stock Number577208
Disc Diameter (In.)7
Shaft Diameter (In.)5/8
Wheel Diameter (Dia. x W) (In.)8 x 1
Wheel Speed (RPM)3,450
Wheel Grits36
Belt Grit80
Dust Port Size (In.)2-1/2
Motor (HP)1/2 HP
Motor Voltage (V.)115V, Single Phase
Overall Dimensions (L x W x H) (In.)21 x 13-3/4 x 14
Weight (Lbs.)69
