DIVERSI-TECH Mini DD Portable Downdraft Tables
DIVERSI-TECH Mini DD Portable Downdraft Tables
Contact us for price
Description

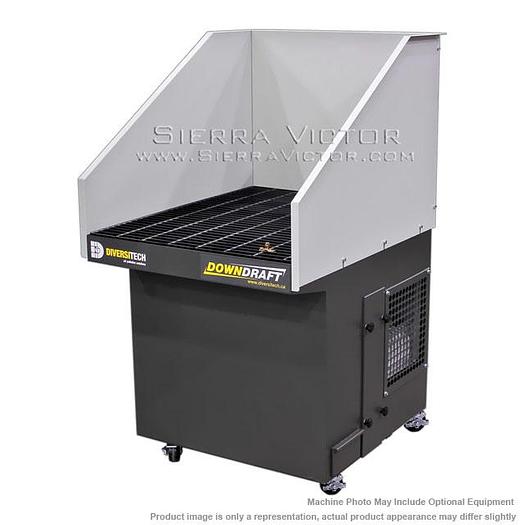

Please note: many products ship straight from manufacturer DIVERSI-TECH Mini DD Portable Downdraft Tables The Diversi-Tech Mini-DD is a portable downdraft table designed for dust and smoke collection. The Mini-DD features a large capacity paper pleated filter with an arrestance rating of 92% @ 2 microns along with a 2" deep metal mesh prefilter. The metal mesh prefilter is washable while the main filter must be replaced periodically. Other filter arrangements are available to suit your application. MODEL Mini-DD CA (with Capture Arm) 120/1/60 1HP motor Washable Prefilter Low Cost Replacement Filters High Capture Velocity (200fpm) Interchangeable Gratings Downdraft Table Applications: Utility Table Odour Control Buffing Sanding Grinding Plasma Cutting Welding Deburring Powder Mixing Soldering Spray Painting ITEM: 2.5' x 3' Portable Downdraft Tables MANUFACTURER: DIVERSI-TECH MODEL: Mini-DD / Mini-DD CA Can be custom built-to-order Add-on side and back walls Second-stage Mesh Filter Grounding lug HEPA Filter
Specifications
| Manufacturer | DIVERSI-TECH |
| Model | Mini DD |
| Condition | New |
| Stock Number | Mini-DD |
| Table Dimensions (D x W x H) | 38” x 30” x 34” |
| Work Surface Dimensions | 38" x 30" |
| Air Flow: | 1200 cfm @ 2.5 S.P. |
| Face Velocity: | 250 fpm |
| Operating Temperature: | 70°F ± Ambient |
| Capacity: | 1200 cfm |
| Static Pressure: | 2.5" S.P. |
| Size: | 20" x 25" x 2" |
| Material: | Metal Mesh |
| Efficiency: | 92% @ 2 Micron |
| Filter Removal Service: | Side Access |
| Filtration Area: | 11 Sq. Ft. |
| Weight: | 200 lbs. |
| Dimensions: | 38" x 30" x 34" High ( Unit Only) |
| Gauge | 14-16 |
| Color: | Dark Grey |
| Paint Finish: | Powder coated |
| Surface Preparation: | Cleaned & Brushed |
| Quantity: | 4 (2 swivel, 2 lock) |
