BAILEIGH Downdraft Table DDTM-8024

No longer available

BAILEIGH Downdraft Table DDTM-8024

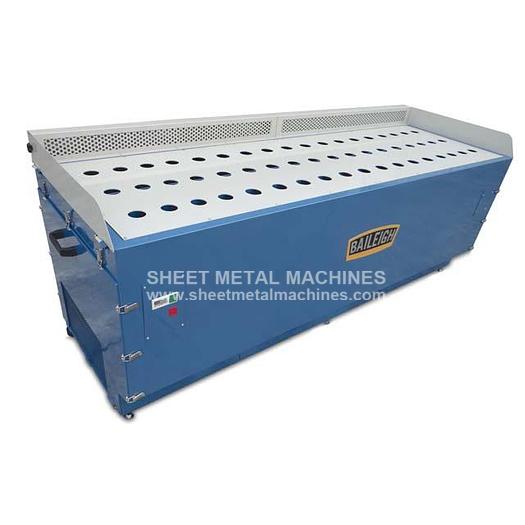

Please note: many products ship straight from manufacturer BAILEIGH 80" x 24" Downdraft Table DDTM-8024 Every Fabrication shop has the need for a welding and grinding station, but this is one of the messiest places in the shop. The DDTM-8024 metal working downdraft table from Baileigh industrial can help with that. This 80” long grinding table features a 3mm thick work table made out of stainless steel and can hold up to 660lbs. What make the DDTM-8024 stand out from the competition is that there is no need for external vacuum sources to clean the air. This unit is completely self-contained. It features two 1hp motors that run on 220v single phase power. Through the use of this dual motor system, it can produce up to 1950 CFM per motor. Also the DDTM-8024 uses fireproof filters to help with safety. 80" x 24" downdraft table 3 mm thick stainless steelwork surface Perfect for grinding and sanding Dual motors 1950 CFM per motor Fireproof air filters Easy clean out chip compartments 220V single phase

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



ManufacturerBaileigh Industrial
Stock NumberDDTM-8024
Voltage220V Single Phase
Table Size80" x 24"
CFM1950 Per Motor
Number of Motors2
Motor Hp1 HP
Filter Type250 Micron / Fireproof
Number of Filters4
Filter Size16" x 20" x 1"
Table Load Capacity660 lbs.
Shipping Dimensions (L/W/H)87" x 32" x 35"
Shipping Weight715 lbs
