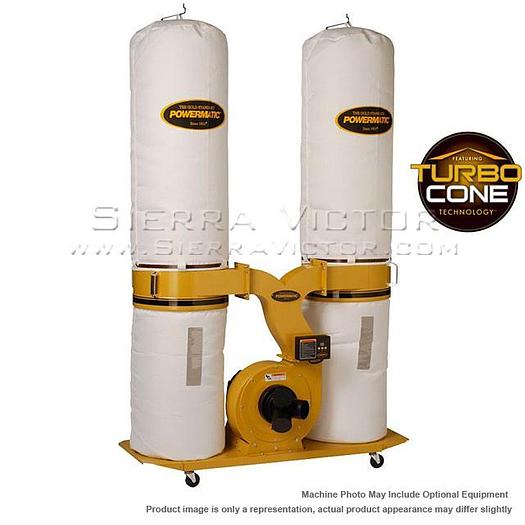

POWERMATIC PM1900TX-BK1 Dust Collector 3HP 1PH 230V 30-Micron Bag Filter Kit 1792071K

POWERMATIC PM1900TX-BK1 Dust Collector 3HP 1PH 230V 30-Micron Bag Filter Kit 1792071K


orCall 386-304-3720


Please note: many products ship straight from manufacturer POWERMATIC PM1900TX-BK1 Dust Collector, 3HP 1PH 230V, 30-Micron Bag Filter Kit 1792071K The PM1900 Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive TurboCone improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bags. The canister filter offers over six times the filtering area of standard filter bags, collects 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Multiple connection port capability makes this machine a central dust collection system for the entire woodworking shop. Four swivel casters and conveniently located handles allow for easy mobility. TurboCone improves chip separation and collector bag packing efficiency The cone eliminates premature filter clogging for sustained performance Remote-controlled digital timer can be programmed for up to 99 minutes All-metal duct construction for rigidity and improved air flow 30-micron filter bags for improved capture of fine dust particles The large impeller is powered by a 3HP motor for peak performance Triple 4” dust ports allow for several hoses to be attached at the same time Cloth collection bags with view window use a snap ring for rapid installation/removal 10 cubic feet collection bag capacity reduces number of bag changes. Tall filter bags require less cleaning due to the larger surface area Four swivel casters for easy maneuverability

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 5 YEAR (for Private Use) / 2 YEAR (for Commercial Use)


Stock Number1792071K
Remote ControlYes
Sound Rating75 - 90 dB
1-Hose Connection Diameter8"
2-Hoses Connection Diameter4"
3-Hoses Connection Diameter4"
Bag Diameter20"
Filter Bag/Canister Length48"
Collection Bag Capacity10 cubic foot
Collection Bag Length30"
Air Flow @ 4"234 cu.ft/min
Air Flow @ 8"1,754 cu.ft/min
Static Pressure11.31 inch of water
Particle Size (Micron)96% of 30 micron particles
Velocity @ 4"5,200 foot per minute
Air Inlet(1) at 8" or (3) at 4"
Impeller Diameter14"
Impeller Fins7
Impeller MaterialSteel
Separator Tank Diameter20"
Separator Tank Height10"
Motor3 HP, 1 Ph
Motor Voltage230V
Prewired Voltage230V
Motor Current15 A
Overall Dimensions ( L / W / H ) Shipped61" x 30" x 94"
Overall Dimensions ( L / W / H ) assembeld46" x 23" x 28"
Net Weight ( lb. )211
