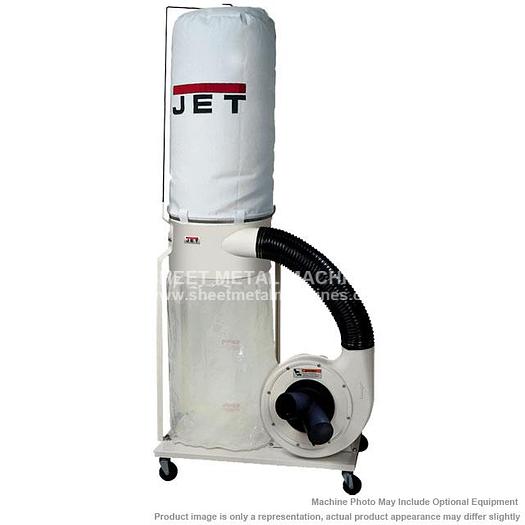

JET DC-1100VX-5M Dust Collector 1.5HP 1PH 115/230V 5-Micron Bag Filter Kit 708658K

JET DC-1100VX-5M Dust Collector 1.5HP 1PH 115/230V 5-Micron Bag Filter Kit 708658K

$579.99

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET DC-1100VX-5M Dust Collector, 1.5HP 1PH 115/230V, 5-Micron Bag Filter Kit, 708658K The JET DC-1100VX-5M features the exclusive Vortex Cone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The filter bag captures up to 98% of 5-micron particles. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop

ITEM: 1,100 CFM Dust Collector with 5-Micron Bag Filter Kit MANUFACTURER: JET MODEL: DC-1100VX-5M PART# 708658K

Specifications

ManufacturerJet
ModelDC-1100VX-5M
ConditionNew
Stock Number708658K
Impeller Diameter11"
Sound Rating70 - 80 dB
1-Hose Connection Diameter6"
2-Hoses Connection Diameter4"
Bag Diameter20"
Filter Bag/Canister Length32"
Collection Bag Capacity5.3 cubic foot
Collection Bag Length30"
Air Flow @ 4"1,100 cu.ft/min
Static Pressure10-1/2 inch of water
Efficiency (Micron)5
Velocity @ 4"12,571 foot per minute
Number of Air Inlet(1) at 6" or (2) at 4"
Impeller MaterialSteel
Motor1-1/2 HP, 1 Ph, 115/230V
Prewired Voltage115V
Motor Current11 / 5.5 A
Dimensions (in.)37 x 22.5 x 22 (shipped), 37 x 22.5 x 79 (assembled)
Net Weight ( lb. )130
