JET DC-1100VX-BK Dust Collector 1.5HP 1PH 115/230V 30-Micron Bag Filter Kit 708657K
JET DC-1100VX-BK Dust Collector 1.5HP 1PH 115/230V 30-Micron Bag Filter Kit 708657K
$549.99
Description

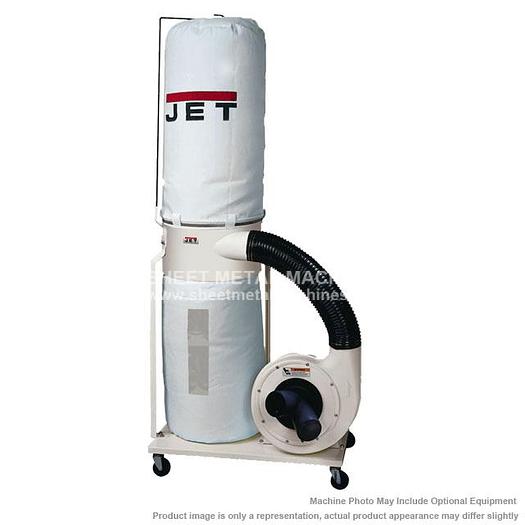

Please note: many products ship straight from manufacturer JET DC-1100VX-BK Dust Collector, 1.5HP 1PH 115/230V, 30-Micron Bag Filter Kit, 708657K The JET DC-1100VX features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have an elastic band for fast installation and removal. Swivel casters offer maneuverability within the shop
ITEM: 1,100 CFM Dust Collector with 30-Micron Bag Filter Kit MANUFACTURER: JET MODEL: DC-1100VX PART# 708657K
Specifications
| Manufacturer | Jet |
| Model | DC-1100VX-BK |
| Condition | New |
| Stock Number | 708657K |
| Blower Wheel Diameter | 11" |
| Sound Rating | 70 - 80 dB |
| 1-Hose Connection Diameter | 6" |
| 2-Hoses Connection Diameter | 4" |
| Bag Diameter | 20" |
| Filter Bag/Canister Length | 32" |
| Collection Bag Capacity | 5.3 cubic foot |
| Collection Bag Length | 30" |
| Air Flow @ 4" | 1,100 cu.ft/min |
| Static Pressure | 10-1/2 inch of water |
| Particle Size (Micron) | 96% of 30 micron particles |
| Air Inlet | (1) at 6" or (2) at 4" |
| Impeller Material | Steel |
| Separator Tank Diameter | 20" |
| Separator Tank Height | 10" |
| Remote Control | — |
| Motor | 1-1/2 HP, 1 Ph, 115/230V |
| Prewired Voltage | 115V |
| Motor Current | 11 / 5.5 A |
| Dimensions (in.) | 37 x 22.5 x 22 (shipped), 37 x 22.5 x 79 (assembled) |
| Net Weight ( lb. ) | 127 |
