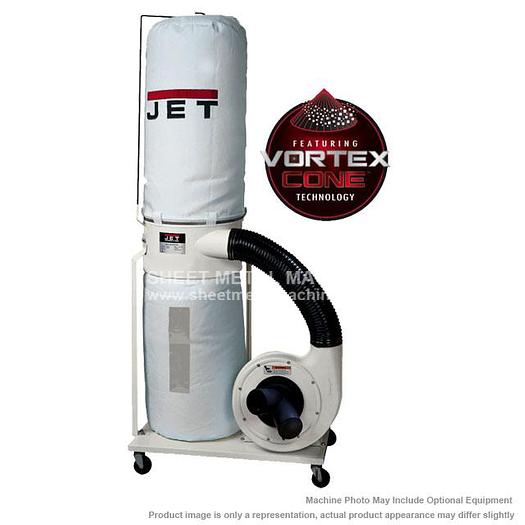

JET DC-1200VX-BK1 Dust Collector 2HP 1PH 230V 30-Micron Bag Filter Kit 710701K

JET DC-1200VX-BK1 Dust Collector 2HP 1PH 230V 30-Micron Bag Filter Kit 710701K

$649.99

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET DC-1200VX-BK1 Dust Collector, 2HP 1PH 230V, 30-Micron Bag Filter Kit, 710701K The JET DC-1200VX features the exclusive Vortex Cone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.

Specifications

ManufacturerJet
ModelDC-1200VX-BK1
ConditionNew
Stock Number710701K
Impeller Diameter12"
Sound Rating80 - 85 dB
1-Hose Connection Diameter6"
2-Hoses Connection Diameter4"
Bag Diameter20"
Filter Bag/Canister Length32"
Collection Bag Capacity5.3 cubic foot
Collection Bag Length29"
Air Flow @ 4"1,200 cu.ft/min
Static Pressure11-1/2 inch of water
Particle Size (Micron)96% of 30 micron particles
Velocity @ 4"13,745 foot per minute
Air Inlet(1) at 6" or (2) at 4"
Impeller MaterialSteel
Separator Tank Diameter20"
Separator Tank Height10"
Remote Control
Motor2 HP, 1 Ph, 230V
Prewired Voltage230V
Motor Current8 A
Dimensions (in.)37.5 x 22.5 x 22 (shipped), 37 x 22 x 79 (assembled)
Net Weight ( lb. )138
