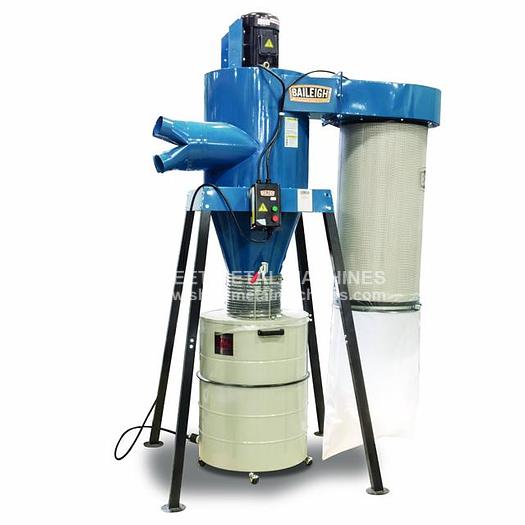

BAILEIGH 5 HP Cyclone Dust Collector DC-3600C


BAILEIGH 5 HP Cyclone Dust Collector DC-3600C



Please note: many products ship straight from manufacturer BAILEIGH 5 HP Cyclone Dust Collector DC-3600C We designed this industrial dust collector to work 2 shifts in heavy woodworking shops—and keep them pristine. This quiet unit will run all day long and stay cooler than competitors.

  • Mighty 5 hp motor runs on 220-volt 3-phase power.
  • Produces 3,600 CFM of suction to pull dust from several machines at the same time.
  • Powerful airflow will overcome resistance caused by the ducting from machine to collector.
  • To deliver more force, this dust collector has a higher amp draw than our smaller capacity units.
  • 1 micron filter traps even the smallest particles with with 99.9% efficiency, keeping your shop’s air clean and breathable.
  • Automatic filter cleaner starts them motorized flapper to release dust when you power down.
  • 60-gallon drum collects enough dust that you don’t have to empty it too frequently.
  • Casters on the drum allow you to easily wheel it and dispose of sawdust. No need to risk a spilling bag!
  • 4 dust ports (10” x 4”) enable you to hook up multiple machines at once.
  • Comes with a grounding screw; just attach a copper wire and touch it to PVC hose to take away the charge.
  • Remote-controlled start and shutoff lets you manage the dust collector while you’re working on another machine across the room.
  • Swivel casters on the base make this dust collector convenient to move.
  • Takes 2 to 4 hours to assemble the machine.
  • Covered by a 1-year parts warranty.
  • We back this dust extraction system with lifetime technical support by phone. Our experienced woodworkers are here to troubleshoot and answer questions.

Recommended for:

  • Industrial cabinet shops
  • Tech colleges that teach multiple woodworking classes
  • Non-woodworking companies that release heavy dust particles into their shop environment


ManufacturerBaileigh Industrial
Stock NumberDC-3600C
Dust Collection Port10" x 4"
Number of Outlets4
Drum Capacity (Gallon)60 gallon
Remote StartIncluded
Power220V, Three Phase
Horse Power5
Noise Level ( @ 3 meters)88 Decibles
Max. Static Pressure12.3 In H2O
Shipping Weight510 lbs.
Shipping Dimensions69" x 44" x 60"
