POWERMATIC PM1300TX-CK Dust Collector 1.75HP 1PH 115/230V, 2-Micron Canister Kit 1791079K

POWERMATIC PM1300TX-CK Dust Collector 1.75HP 1PH 115/230V, 2-Micron Canister Kit 1791079K


orCall 386-304-3720

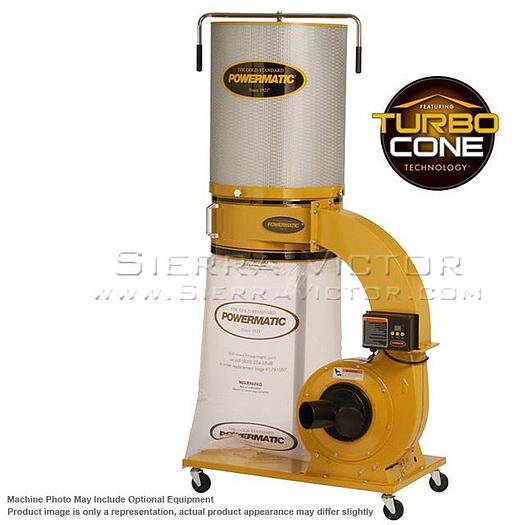

Please note: many products ship straight from manufacturer POWERMATIC PM1300TX-CK 1,064 CFM Dust Collector, 1.75HP 1PH 115/230V, 2-Micron Canister Kit 1791079K The PM1300TX Dust Collector features the exclusive TurboCone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 5 YEAR (for Private Use) / 2 YEAR (for Commercial Use)


Stock Number1791079K
Remote ControlYes
Sound Rating75 - 90 dB
1-Hose Connection Diameter6"
2-Hoses Connection Diameter4"
Bag Diameter20"
Filter Bag/Canister Length26"
Collection Bag Capacity10 cubic foot
Collection Bag Length30"
Air Flow @ 6"1,064 cu.ft/min
Static Pressure11.31 inch of water
Particle Size (Micron)98% of 2 micron particles: 86% of 1 micron particles
Velocity @ 6"5,374 foot per minute
Air Inlet(1) at 6" or (2) at 4"
Impeller Diameter12"
Impeller Fins6
Impeller MaterialSteel
Separator Tank Diameter20"
Separator Tank Height10"
Motor1-3/4 HP, 1 Ph
Motor Voltage115 / 230V
Prewired Voltage115V
Motor Current15 / 7.5 A
Overall Dimensions ( L / W / H ) (in.)45 x 23 x 23 (shipped)
Net Weight ( lb. )154
