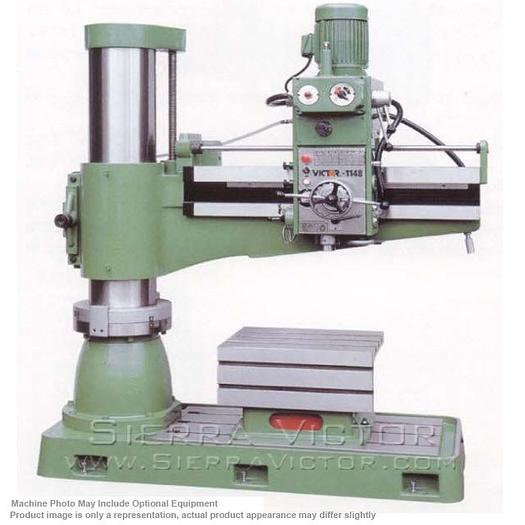

VICTOR Radial Drill 1148
VICTOR Radial Drill 1148
Contact us for price
Description
Please note: many products ship straight from manufacturer VICTOR Radial Drill 1148
- Power elevating motor arm with anti-fall safety device
- Electric clamping of column, arm, and head independently controlled by push button switch
- Hardened and precision ground arm ways
- High speed gears are made of Nickel-Chrome steel and through heat treatment process and precision grinding
- The arm is made of high quality cast iron through heat treatment process and precision grinding
- Bearing bracket of gearbox uses standard bearing for arm slide to provide gearbox smooth movement along arm slide
- The spindle is counter balanced by means of an adjustable block
- Limit safety device for operation
- Built-in work light
- Built-in coolant system
STANDARD ACCESSORIES:
- Plain box table
- Work light
- Coolant system
Design and Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
| Manufacturer | Victor |
| Model | 1148 |
| Condition | New |
| Stock Number | 1148 |
| Diameter of column | 11.19" |
| Max distance from column to spindle | 48.50" |
| Min distance from column to spindle | 13.38" |
| Travel of spindle head | 35" |
| Max distance from base to spindle end | 54" |
| Min distance from base to spindle end | 19.38" |
| Elevating height of arm | 34.63" |
| Effective area of table | 24-3/4” x 20-1/2” x 16-1/2" |
| Dimensions of base | 67-3/4” x 28” x 6-1/2" |
| Drilling steel | 1.56" |
| Drilling cast iron | 2.19" |
| Tapping steel | 0.75" |
| Tapping cast iron | 0.75" |
| Boring steel | 3.38" |
| Boring cast iron | 4.75" |
| Taper hole sppindle | M.T. #4 |
| Stroke of spindle | 9.875" |
| Spindle speeds (rpm x steps) | 44 ~ 1,500 rpm x 12 steps (44, 77, 88, 147, 154, 228, 282, 398, 456, 750, 796, 1500) |
| Spindle feeds (rev. x steps) | 0.002”, 0.0035”, 0.0059” x 3 steps |
| Main motor | 3 HP, 3 phase (2-speed motor) |
| Elevating motor | 1 HP |
| Clamping motor | 1 HP |
| Coolant pump | 1/8 HP |
| Machine height from floor | 109-1/2" |
| Shipping Dimensions | 80" x 39" x 89" |
| Net Weight | 4,620 lbs. |
| Shipping Weight | 4,950 lbs |
