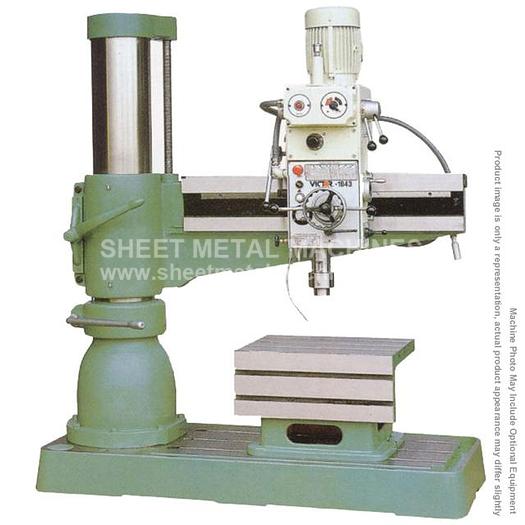

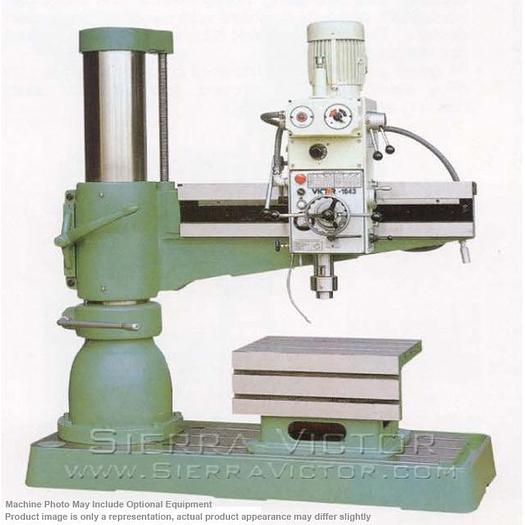

VICTOR Radial Drill 1043
VICTOR Radial Drill 1043
Contact us for price
Description
Please note: many products ship straight from manufacturer VICTOR Radial Drill 1043
- Power elevating motor arm with anti-fall safety device
- Spindle is balanced by means of cylinder shap spring
- Hardened and precision ground arm ways
- High speed gears are made of Nickel-Chrome steel and through heat treatment process and precision grinding
- Manual clamping of column, arm, and head
- Limit safety device for operation
- Built-in work light
- Built-in coolant system
EQUIPPED WITH:
- Plain box table
- Work light
- Coolant system
Design and Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
| Manufacturer | Victor |
| Model | 1043 |
| Condition | New |
| Stock Number | 1043 |
| Diameter of column | 10.25" |
| Max distance from column to spindle | 43.31" |
| Min distance from column to spindle | 9.625" |
| Travel of spindle head | 33.625" |
| Max distance from base to spindle end | 50.375" |
| Min distance from base to spindle end | 12.625" |
| Elevating height of arm | 24" |
| Effective area of table | 24-3/4” x 20-1/2” x 16-1/2" |
| Dimensions of base | 67-3/4” x 28” x 6-1/2" |
| Drilling steel | 1.56" |
| Drilling cast iron | 2.19" |
| Tapping steel | 0.75" |
| Tapping cast iron | 0.75" |
| Boring steel | 3.38" |
| Boring cast iron | 4.75" |
| Taper hole sppindle | M.T. #4 |
| Stroke of spindle | 9" |
| Spindle speeds (rpm x steps) | 44 ~ 1,500 rpm x 12 steps (44, 77, 88, 147, 154, 228, 282, 398, 456, 750, 796, 1500) |
| Spindle feeds (rev. x steps) | 0.002”, 0.0035”, 0.0059” x 3 steps |
| Main motor | 3 HP, 3 phase (2-speed motor) |
| Elevating motor | 1 HP |
| Coolant pump | 1/8 HP |
| Machine height from floor | 100" |
| Shipping Dimensions | 74" x 34" x 89" |
| Net Weight | 3,960 lbs. |
| Shipping Weight | 4,290 lbs |
