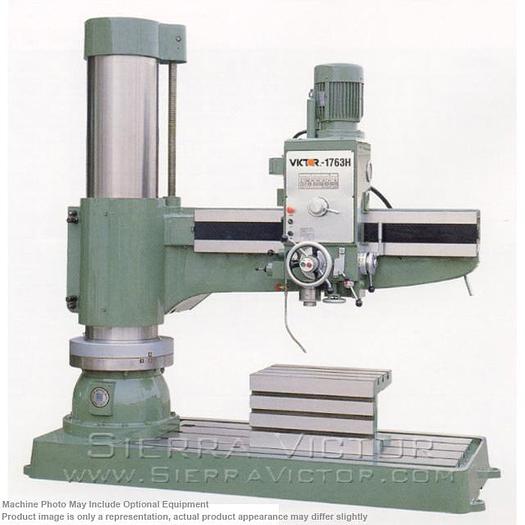

VICTOR Radial Drill 1763H

VICTOR Radial Drill 1763H
Contact us for price
Description
Please note: many products ship straight from manufacturer VICTOR Radial Drill 1763H
- Hydraulic clamping system of column, arm, and head independently controlled by push button switch. Vertical movement of arm is coordinated by an IC timer
- Power elevating motor arm with anti-fall safety device
- Cycling oil pump designed to cool off precision gears inside gearbox and minimize excessive wear and tear on gears to the lowest extent
- Friction type disc clutch to absorb impact force caused by vertical movement of spindle and effectively protect all transmission units inside gearbox
- Built-in clutch for quick spindle return to speed up tapping operation
- Automatic tool ejector device to shift tools efficiently
- Built-in work light
- Built-in coolant system
STANDARD ACCESSORIES:
- Plain box table
- Work light
- Coolant system
OPTIONAL ITEMS: CALL FOR PRICE
- 19014-02: Tilt table 520 x 510 x 570 mm (20.47" x 20" x 22.44") (when ordering with machine)
- 19014-03: Tilt table 810 x 710 x 610 mm (31.89" x 27.95" x 24") (when ordering with machine)
Design and Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
Manufacturer | Victor |
Model | 1763H |
Condition | New |
Stock Number | 1763H |
Diameter of column | 17" |
Max distance from column to spindle | 63" |
Min distance from column to spindle | 13.38" |
Travel of spindle head | 49.63" |
Max distance from base to spindle end | 63" |
Min distance from base to spindle end | 13" |
Elevating height of arm | 35.44" |
Effective area of table | 27-5/8" x 19-5/8" x 15-3/4" |
Dimensions of base | 97-5/8" x 41-11/32" x 8-1/4" |
Drilling steel | 2.25" |
Drilling cast iron | 2.625" |
Tapping steel | 2" |
Tapping cast iron | 2.375" |
Boring steel | 5" |
Boring cast iron | 7.375" |
Taper hole sppindle | MT #5 |
Stroke of spindle | 14 - 9/16" |
R.P.M of spindle (rpm x steps) | 40 - 1,920 rpm x 12 steps |
Feed of spindle (rev. x steps) | 0.0028", 0.0378" x 6 steps |
Main motor | 7.5 HP, 3 phase |
Elevating motor | 2 HP |
Clamping motor for column and gear box | 1 HP |
Coolant pump | 1/8 HP |
Max. machine height from floor | 124-7/8" |
Shipping Dimensions | 112" x 53" x 117" |
Net Weight | 11,220 lbs. |
Shipping Weight | 12,540 lbs |
