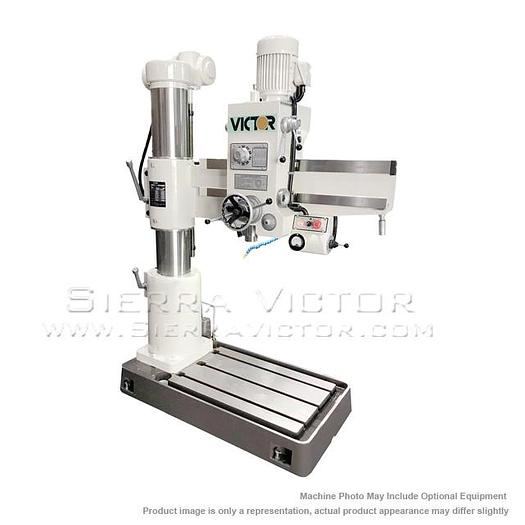

VICTOR Radial Drill 833

VICTOR Radial Drill 833

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer VICTOR Radial Drill 833

  • Power elevating motor arm with an anti-fall safety device
  • Hardened and precision ground arm ways
  • High speed gears are made of Nickel-Chrome steel and through the heat treatment process and precision grinding
  • Extra auxiliary dial for spindle feed depth indication to review the momental feed depth of spindle
  • Special mechanism for spindle balance to avoid the defect on breaking of balance spring
  • Manual clamping of column, arm, and head
  • Built-in work light
  • Built-in coolant system


STANDARD ACCESSORIES:

  • Plain box table
  • Work light
  • Coolant system


Design and Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Show All

Specifications

ManufacturerVictor
Model833
ConditionNew
Stock Number833
Diameter of column8.25"
Max distance from column to spindle33.50"
Min distance from column to spindle8.625"
Travel of spindle head24.875"
Max distance from base to spindle end47.625"
Min distance from base to spindle end13.75"
Elevating height of arm25.56"
Effective area of table23-7/16” x 17-23/32” x 14-31/32"
Dimensions of base49-5/8” x 25-3/16” x 6-9/32"
Drilling capacity steel1.25"
Drilling capacity cast iron1.97"
Tapping steel0.875"
Tapping cast iron0.875"
Boring capacity (steel):2.75"
Boring capacity (cast iron):4.17"
Taper hole sppindleMT #4
Stroke of spindle8.25"
Spindle speeds (rpm x steps)88, 154, 282, 455, 796, 1500 x 6 steps
Spindle feeds (rev. x steps)0.002”, 0.0035”, 0.0059” x 3 steps
Main motor2 HP, 3 phase
Elevating motor1 HP
Clamping motor—
Coolant pump1/8 HP
Machine height from floor91-3/8"
Shipping Dimensions66" x 32" x 86"
Net Weight2,750 lbs.
Shipping Weight3,080 lbs.
