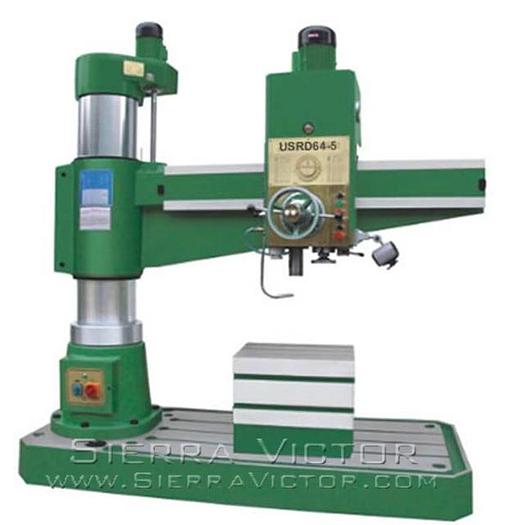

U.S. INDUSTRIAL 63" Radial Arm Drill Press USRD64-5
U.S. INDUSTRIAL 63" Radial Arm Drill Press USRD64-5
$34,445 Call for Freight Specials
Description
Please note: many products ship straight from manufacturer U.S. INDUSTRIAL 63" Radial Arm Drill Press USRD64-5
- Morse Taper 5 Spindle
- Two side box work table, t-slotted
- T-slotted base
- Flood Coolant System
- Power Arm Elevation
- Power Arm Clamp
- High Precision, Low Noise Ground Gears
- 12” + drilling depth
STANDARD ACCESSORIES:
- Box Shape Worktable
- Taper Sleeve
- Tool Releasing Wrench
- Drift
- Eyelit Bolts
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
| Manufacturer | US Industrial |
| Model | USRD64-5 |
| Condition | New |
| Stock Number | USRD64-5 |
| Drilling Capacity | 2” |
| Minimum and Maximum spindle to column | 13.8” to 63" |
| Diameter of column | 13.8" |
| Spindle | Morse Taper 5 |
| Spindle Travel | 12.4" |
| Spindle speeds (16 speed gear driven) | 30 to 2400 RPM |
| Spindle feeds in Inches Per Revolution (16 feeds) | .0016 to .126 |
| Minimum and Maximum distance spindle to base | 12.6” to 48” |
| Box Table dimensions | 24.8” x 19.7” x 19.7" |
| Base dimensions | 94.5” x 39.3” x 7.9” |
| Overall dimensions | 98.4” x 41.7” x 104” |
| Main spindle drive | 5.4 HP (208-240 OR 440-480 Volts, 3 phase) |
| Gross Weight | 8,580 lbs. (Net weight: 7,700 lbs.) |
