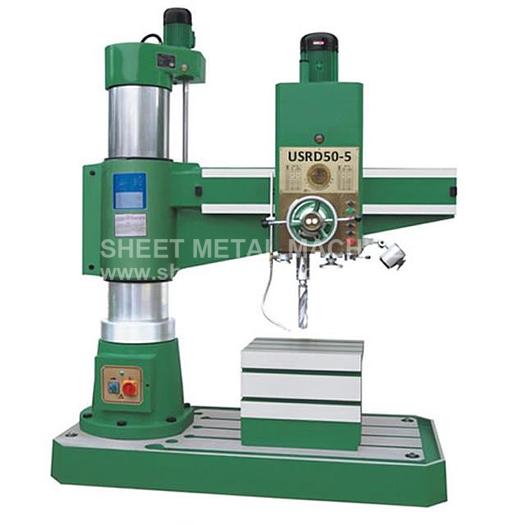

U.S. INDUSTRIAL 49" Radial Arm Drill Press USRD50-5

U.S. INDUSTRIAL 49" Radial Arm Drill Press USRD50-5

$31,295 FREE SHIPPING!

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer U.S. INDUSTRIAL 49" Radial Arm Drill Press USRD50-5

  • Morse Taper 5 Spindle
  • Two side box work table, t-slotted
  • T-slotted base
  • Flood Coolant System
  • Power Arm Elevation
  • Power Arm Clamp
  • High Precision, Low Noise Ground Gears
  • 12” + drilling depth


STANDARD ACCESSORIES:

  • Box Shape Worktable
  • Taper Sleeve
  • Tool Releasing Wrench
  • Drift
  • Eyelit Bolts


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerUS Industrial
ModelUSRD50-5
ConditionNew
Stock NumberUSRD50-5
Drilling Capacity2”
Minimum and Maximum spindle to column13.8” to 49.2"
Diameter of column13.8"
SpindleMorse Taper 5
Spindle Travel12.4"
Spindle speeds (16 speed gear driven)25 to 2,500 RPM
Spindle feeds in Inches Per Revolution (16 feeds).0016 to .126
Minimum and Maximum distance spindle to base13.8” to 48”
Box Table dimensions24.8” x 19.7” x 19.7"
Base dimensions80.7” x 39.4” x 7.9”
Overall dimensions84.6” x 41.7” x 104.3
Main spindle drive5.4 HP (208-240 OR 440-480 Volts, 3 phase)
Gross Weight7,716 lbs. (Net weight: 6,820 lbs.)
